Paper Roll Slitter Rewinder

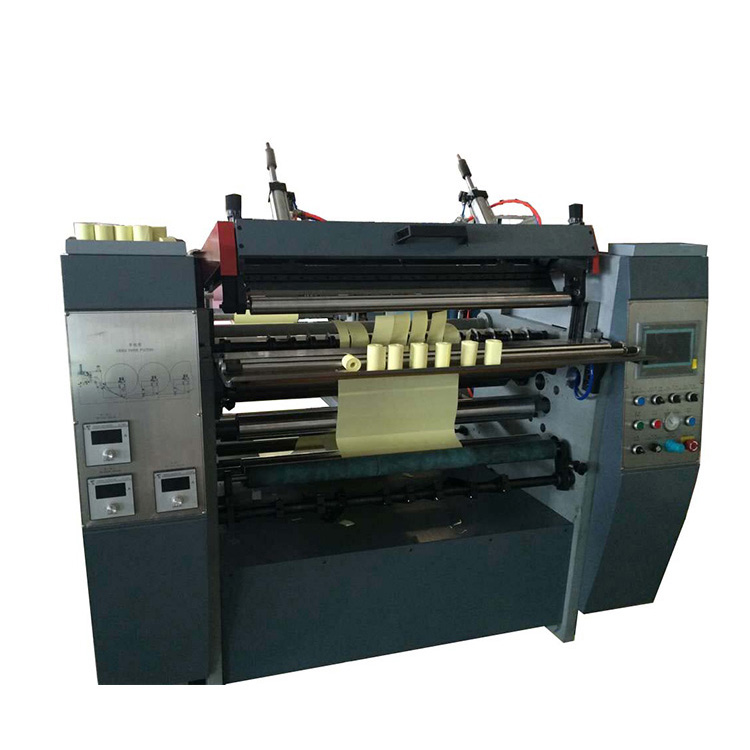

Automaitc 2 ply NCR paper slitting rewinding machine
-
PPD-2Y800
-
Automatic 2 ply NCR paper slitting rewinding machine is new designed model to slit rewind jumbo roll to 2 ply small product NCR paper roll,ATM roll,thermal roll,pos roll,cash register roll,recoed paper,lottery ticket roll, doctor exam, pressure sensitive labels, credit card receipt paper, fax paper, computer bill, medical record paper roll,car parking receipt roll etc..
Machine is adopt the surface rewinding,automatic replicate,automatic insert reel.
This model can do 1ply thermal paper slitter rewinder and 2 ply NCR paper slitter rewinder of different raw material loading.
Video
Features:
1:Siemens PLC touch screen HMI,easy to operate and user friendly.
2:Automatic magnetic powder brake system.
3:Tension force is controlled by the Programmable Logic Controller.
4:Automatic raw material loading with individual motor control.
5:Automatic meter counting,automatic stop once reach the setting meters.
Machine data:
Machine name: Automatic 2 ply NCR paper slitting rewinding machine
Machine model:PPD-2Y800
Max parent roll width:800mm(900mm option)
Max parent roll diameter:1000mm
Parent roll inner diameter:76mm(3inch)
Loading method of parent roll: Air shaft
Baby roll inner diameter:12,15,18mm (option)
Baby roll outer diameter:max 180mm
Baby roll standard slit width:56mm/79mm(or 57mm/80mm)
Max rewinding speed:150m/min
Voltage:220/380/415/450v,3ph(option)
NOTE:ANY SPECIFICATIONS CAN BE CUSTOMIZED
