Thermal paper monochrome flexographic printing slitter rewinder, China factory price

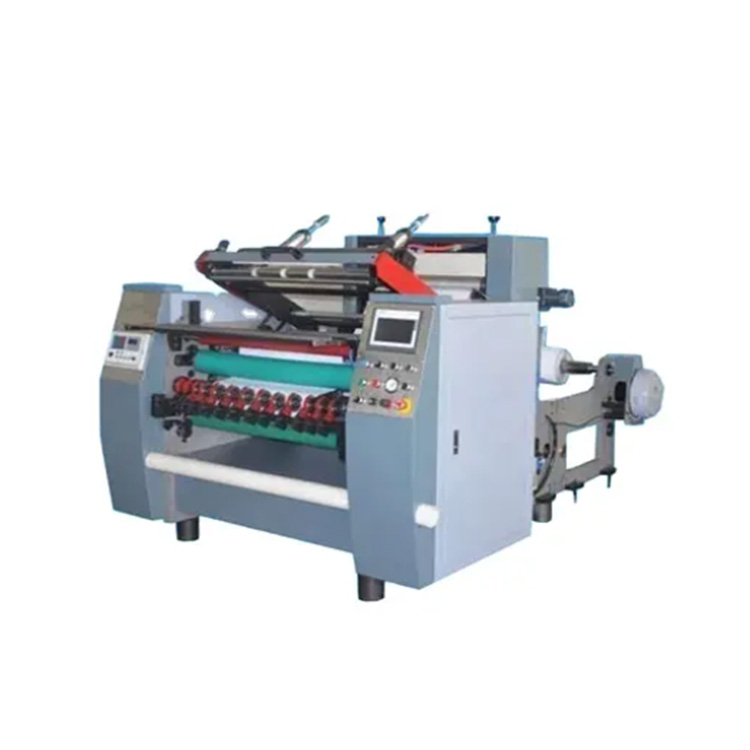

Thermal paper monochrome flexographic printing slitter rewinder

PPD-TPFPSR530
Thermal paper monochrome flexographic printing slitter rewinder is developed and produced by our company based on the thermal paper slitting rewinding machine,combined with our flexographic printing machine technology, according to customer requirements.This device is a machine that integrates monochrome flexographic printing,slitting and rewinding.
The device adopts Siemens control system,variable frequency speed regulation,automatic meter counting,easy to operate.

Video

Features:

1. The equipment integrates printing, slitting and rewinding,is a multifunctional machine.

2.10 kg magnetic powder brake,automatic tension system,stable working.

3. Siemens PLC,Siemens touch screen and electrical control system,with stable and reliable quality.

4. Automatic meter counting with high accuracy.

Machine data:

Machine name:Thermal paper monochrome flexographic printing slitter rewinder

Machine model:PPD-TPFPSR530

Big roll paper OD:max 1200mm

Big roll paper ID:76

Big roll paper width:max900mm

Printing width:max 530mm

Printing speed:max100m/min

Paper thickness 40-120g/m2

Product roll diameter:max 200mm

Slitting speed:max150m/min

Product roll cutting width:min25mm

Core shaft diameter:12.7,15,18,25mm etc.

Power supply:380V/50HZ/2.2KW

Air:0.6Mpa

Dimensions:2500*1600*1600mm

Weight (estimated):2000kg
