Cling Film Rewinder

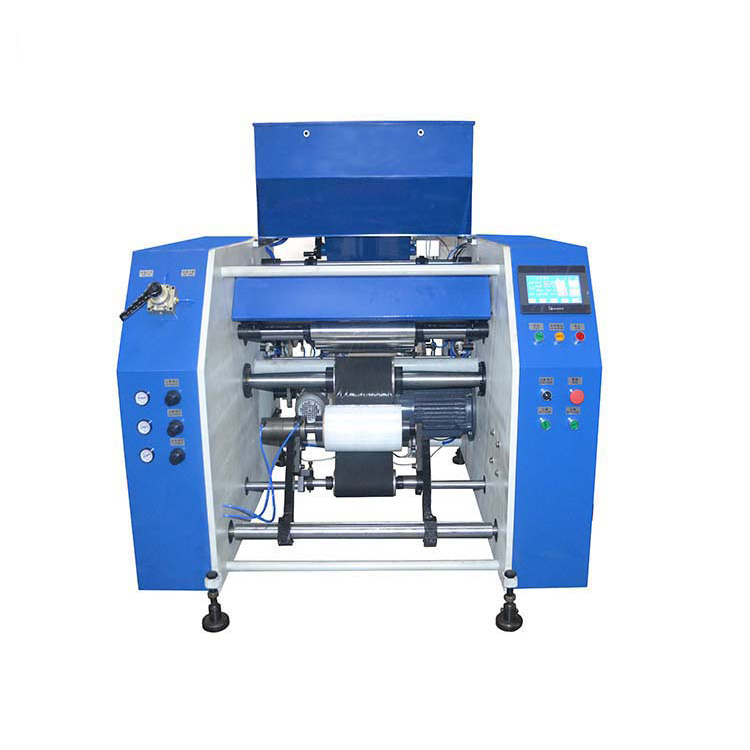

Auto 5 Shaft Cling Wrap Film Rewinding Dotting Machine
-
PPD-ACRP450
-

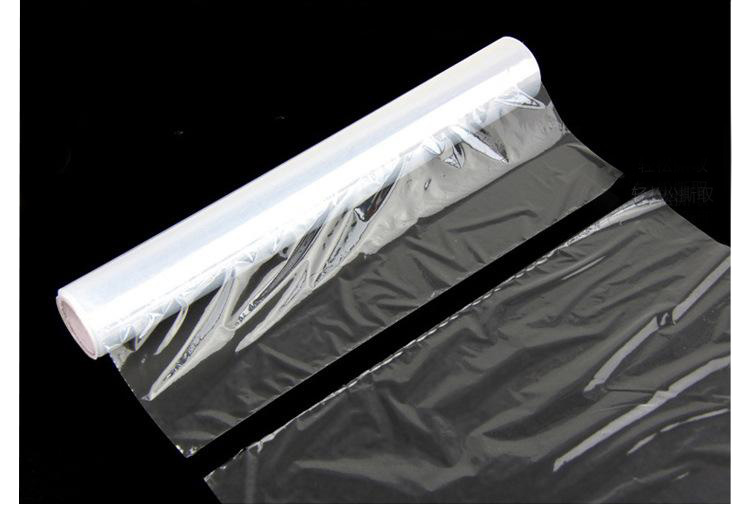

Auto Cling Wrap Film Rewinding Perforation Machine is designed for producing the cling wrap film roll with dotting line.
With the dotting line,it is easy to tear off the cling film roll and use.
Machine is with 5 shaft paper core exchange system,dotting system,automatic counting system.
Video
Features:
1.Machine with PLC touch screen and manual control panel together with inverter control system. Easy to operate and user friendly.
2.Machine is with 5 shaft automatic paper core changing system,high output.
3.Machine can produce the dotting cling wrap film and standard cling wrap film by changing the dotting system.
Machine data:
Model:PPD-ACRP450
Mother roll width:max 450mm
Baby roll width:max 450mm
Working speed:max 650rpm/min
Mother roll diameter:max 350mm
Baby roll length:Max120m
Mother roll inner core size:76mm
Baby roll innder core size:30/35mm(option)
Voltage:220/380/415/450,3ph(option)
Total power:4.5kw
Weight:880kg
Machine size:1550*1300*1650mm
NOTE:ANY SPECIFICATIONS CAN BE CUSTOMIZED.
