2 shaft semi automatic aluminium foil rewinder

  • PPD-AF450

  • 2 shaft semi automatic aluminium foil rewinder is designed model to produce proudct aluminium foil rolls,kitchen foil rolls,household aluminum foil rolls as buyer requirement.

Video

Features:

1:Machine is with two shafts rewinding,the speed is much faster than one shaft rewinding,once one roll is ending,the other roller will rewinding in the meanwhile,the machine will not stop,always working.

2:PLC and HMI plus inverter control system,esay to use it,user friendly.

3:Machine is with automatic meter counting,automatic shutdown,automatic deceleration,automatic brake system.


Machine data:

Model:PPD-AF450

Rewinding material:Aluminium foil

Parent roll thickness:8-20mic

Parent roll width:450mm(adjustable)

Parent roll inner core size:76&152mm (option)

Parent roll outer diameter:max 600mm

Baby roll inner core diameter:30/35/38mm(option)

Baby roll width:450mm(adjustable)

Baby roll length:3-300meters

Working speed:max 300rpm/min

Voltage:220/380/415/450v,50hz,3 phase

Total power:2.2kw

Machine weight: 880kg

Machine size: 1800*1750*1350mm

NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS BUYER REQUIREMENT

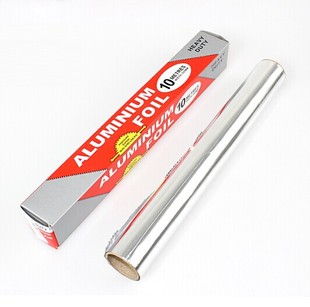

aluminium foil rolls.jpg




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
