Continuous Business Form Machine

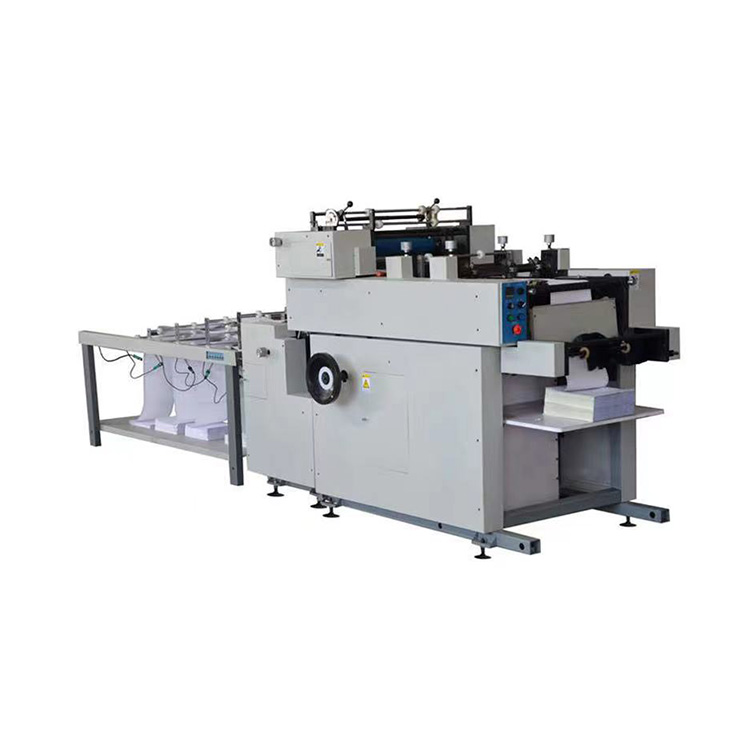

Rotary glue coating and collation machine
-
PPD-RGC450
-

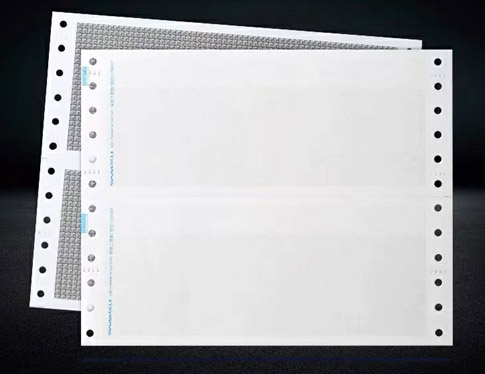

Rotary glue coating and collation machine (confidential envelopes), the lock edge is flat and firm, machine runs smoothly without paper jams. Can do gluing, collation, slitting and so on. The machine can be used for payroll, gluing, collating, supplementary pressing and tearing lines and other products. It also has all the functions of the coding and collating machine and the function of EMS sheet glue coating and collating.
Video
Standard configuration of Rotary glue coating and collation machine:
1. Randomly configure a set of 11-inch 2, 3 equal pressure steel wire knife rollers
2. Randomly configure 2 sets of 22-inch number seats
3. Randomly configure 1 22-inch numbering gear
4. Random configuration 11-inch glue size 1 set
5. Randomly configure 2 DIPs
6. Randomly configure 1 set of 11-inch folding size
7. Random configuration of 1 slitting knife
8. 1 set of standard configuration tools
Note: No number machine is configured.
Machine data:
Machine name: Rotary glue coating and collation machine
Machine model:PPD-RGC450
Maximum collation width:50mm
The number of collation layers: 6 layers
The maximum number of glue layers:2 layers
Collation speed:30-100m/min
Collation size:7-14 inches
Maximum number of machines:42
Motor power :220V/50HZ/1.75KW
Machine weight:700-800KG
Related Product
Commercial Bill Rotary Printing Machine
PPD-CBR460
Rotary glue coating and collation machine
PPD-RGC450
Continous form machine
PPD-CFM500
Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
