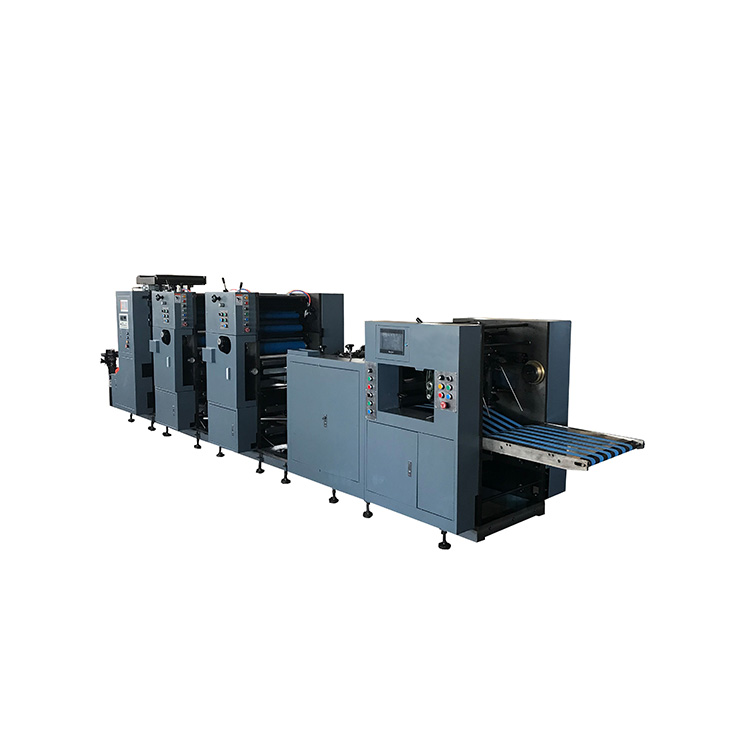

Commercial Bill Rotary Printing Machine is our high quality machine of single-joint paper feeding,two sets of offset printing,punching(¢4mm plum blossom hole +¢6mm plum blossom hole binding holes,the center distance between the two holes is ¢12mm, 5.5 inches punch A stapling hole),pressing horizontal and vertical lines,folding and receiving paper as a whole.The whole machine adopts advanced field bus system control to ensure the accuracy and coordination of the functions of each part of the equipment.
Configuration:
1. 1 set of 11-inch 2-section folding line knife cylinder
2. 2 groups of 11-inch printing plug-ins
3. 1 set of domestic tension control system and deviation correction system (domestic)
4. Alcohol dampening system, 1 alcohol cabinet
5. 1 ordinary bending machine
6. Accessories box is equipped with 500 punching nails, 100 punching dies, 10 horizontal line knives,1 set of tools as standard configuration
Machine data:
Machine name: Commercial Bill Rotary Printing Machine
Machine model:PPD-CBR460
Paper width:max 470mm
Jumbo roll paper outer diameter:max 1100mm
Printing width:max 460mm
Exchange drum:10″~24″
Folding size:8〃~14〃
Printing paper thickness:40~120 g/㎡
Machine speed:Max 150m/min
Power supply:380V/50HZ/11KW
NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
PPD-RGC420
PPD-CBR460
PPD-CFM500
Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
