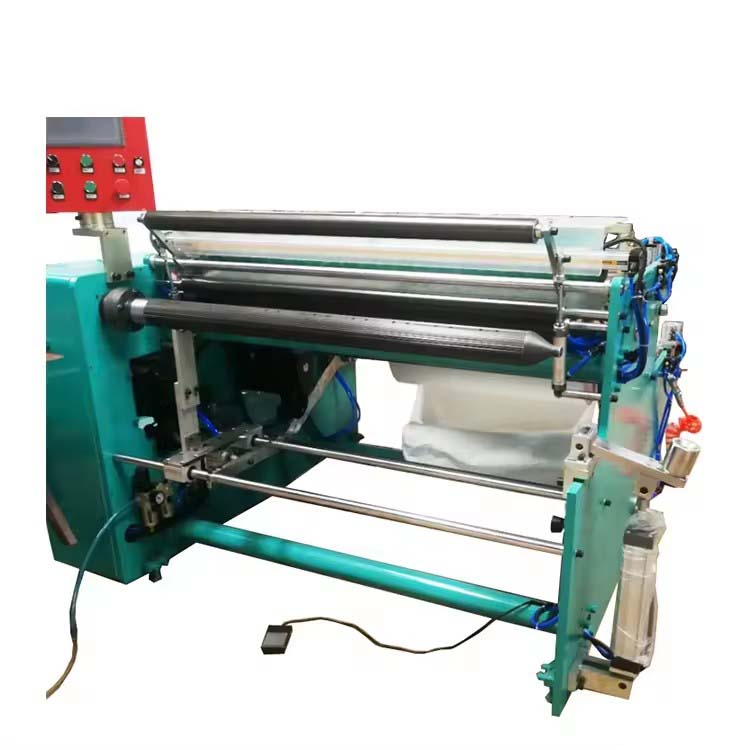

Machine is a special equipment for rewinding small roll paper such as window film,car glass film, gift film,gift paper,hard paper core,soft paper core,advertising paper,wallpaper and various wrapping papers coreless roll and with core roll.
Features:
1:Unwinding: pneumatic lifting unwinding rack, integrated unwinding rack, etc
2:Winding: continuous air expansion shaft, automatic inflation and opening controlled by plc (winding shaft diameter optional)
3:Cut off: adopt rodless cylinder reciprocating automatic partition
4:Main control: fixed length feeding, high accuracy in high-speed operation
5:It has the functions of high length setting accuracy, neat winding, simple operation, beautiful appearance, stable performance, etc. It can also form a production line with shrink packaging machine.
Machine data:
Machine name: Window film gift film rewinding machine
Machine model:PPD-WF1000
Parent roll width:1000mm or customized
Parent roll diameter:max 600mm
Rewinding roll core size:25mm,38mm or customized
Rewinding roll diameter:max 260mm
Fixed length accuracy:±5mm
Speeed:max 150meters per min
Weight:1000kg
Voltage:380v,50hz,3ph(option)
NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
