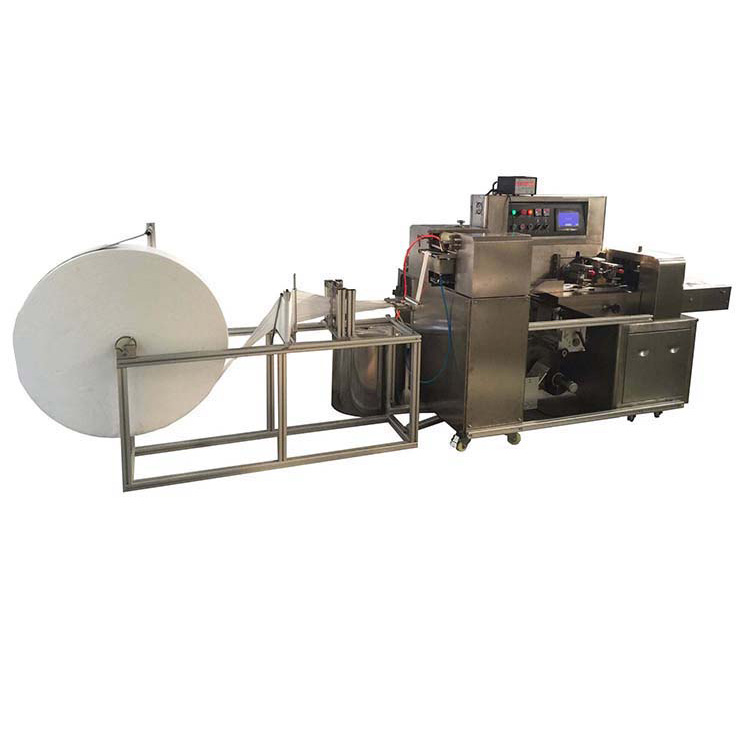

Three side sealing wet wipes packaging machine

  • PPD-3SWW

  • This machine is specially designed for three side sealing wet wipes,restaurant wipes, hotel wipes,cleansing wipes,air line fresh wipes,health wipes, medical wipes,sanitary wipes, disinfectant wipes, etc. packing,has compact structure, runs in security.Adopt vertically folding,feeding film underneath,it runs fast and stably.

    Production Process:
    Nonwoven raw material laoding → folding → humidification → slitting → product conveying → automatic bag making, packaging (three side sealing) → printing batch number(option) → output finished product.

Video

Features:

1.The length and width of the wet wipes can be easily adjusted. At the same time, there are a variety of folding methods, which can produce wet wipes of different uses and different specifications to meet the needs of the development of new products in the market.

2.PLC Touch screen control

3.The bag length is set to cut, no need to adjust the empty walk, one step in place, saving time and film;

4.Positioning stop function,no sticking knife, no waste envelope;

5.High-sensitivity photoelectric eye color tracking, digital input sealing and cutting position, so that the sealing and cutting position is more accurate;

6.Temperature independent PID control, better suited to a variety of packaging materials;

7.The working face of the whole machine is laid stainless steel, clean and hygienic;

8 The transmission system is simple, the work is more reliable, and the maintenance is more convenient;

9. Manufacturing date/batch number hot stamping machine. (Option)


Machine data:

Machine Name:Three side sealing wet wipes packaging machine

Wet wipes unfolding size:length 150-250mm × width 100-250mm(as buyer requirement)

Wet wipes folded size:length 75-125mm (adjustable) × width 40-80mm (adjustable) (as buyer requirement)

Bag size: length 90-180mm × width 60-125mm(as buyer requirement)

Processing capacity:60-100 bags/min

Applicable materials:spunlace nonowven, wet paper(as buyer requirement)

Raw material inner core diameter:Φ76.2mm (=3")

Total power:220v 50Hz 2.6KW(option)

NOTE:ANY SPECIFICATIONS CAN BE CUSTOMIZED.







Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
