Food Paper Rewinder

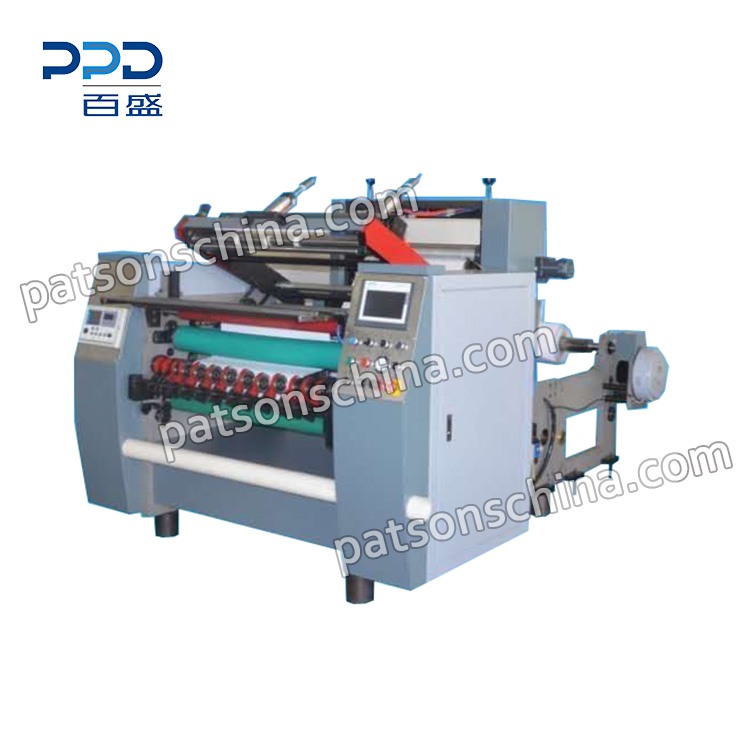

Thermal Paper Monochrome Flexographic Slitting Rewinding Machine
-
PPD-TPMS900
-

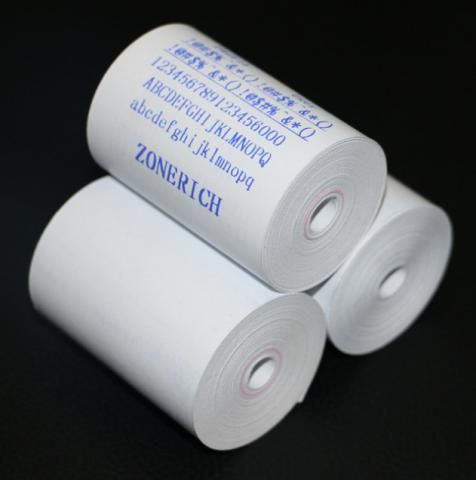

Thermal Paper Monochrome Flexographic Slitting Rewinding Machine is latest designed model,it is a multi-function model,can do both flexo printing and slitting of ATM roll,thermal roll,pos roll,cash register roll,lottery ticket roll, doctor exam, pressure sensitive labels, credit card receipt paper roll, fax paper, computer bill, medical record paper roll etc..
Video
Features:
1:With Siemens PLC and Touch screen
2:Automatic chain loading of the jumbo roll
3:Frequency speed control
4:Automatic meter counting
5:Easy to change of the cutting kinves,simple in operation and user friendly.
Machine data:
Machine name:Thermal Paper Monochrome Flexographic Slitting Rewinding Machine
Machine model:PPD-TPMS900
Paper thickness:40-120g/m2
Big roll width:900mm
Big roll OD:Max 1000mm
Big roll ID:76mm(3inch)
Big roll loading method: Air shaft
Printing Width:Max 530mm
Small roll ID:12,15,18mm (option)
Small roll OD:Max 180mm
Small roll slit width:min 30mm
Slitting speed:max 120m/min
Printing speed:35-100m/min
Voltage:220/380/415/450v,3ph(option)
Power:2.2kw
Air suppl:0.6Mpa
Related Product
Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
