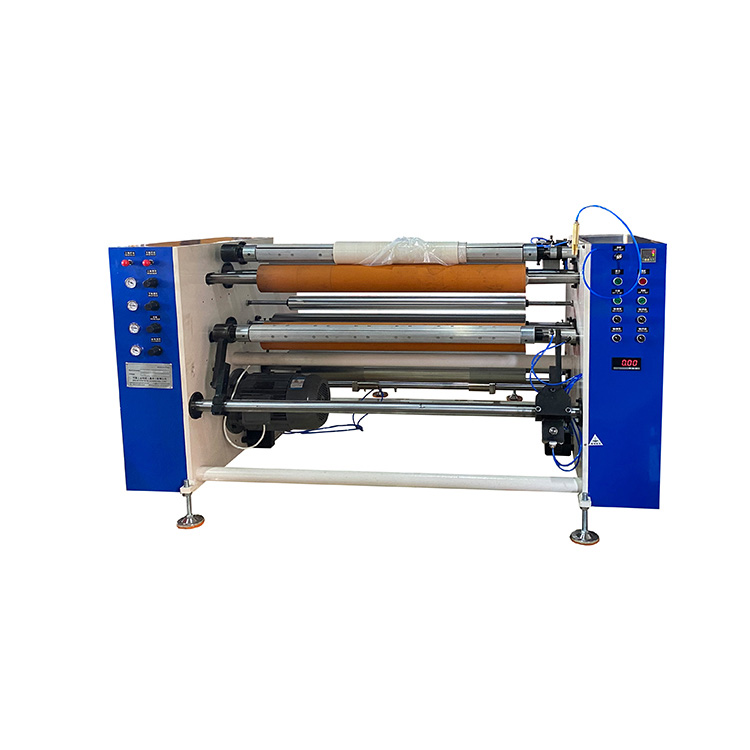

Semi-automatic coreless stretch film rewinder 1000mm width, China factory price

Semi-automatic coreless stretch film rewinder 1000mm width

PPD-CSSR1000
Semi-automatic coreless stretch film rewinder 1000mm width is designed and developed by our company according to customer requirements. This equipment is based on our company's original standard semi-automatic stretch film cutting machine with a width of 500mm, and has added a width of 1000mm. The machine can produce products within a width of 1000mm, making the product more applicable. Added air expansion shaft type winding, which can be used for non core product rolls or core product rolls.
This device can not only rewind, but also perform slitting and rewinding.

Video

Features:

1.Air shaft rewinding system,can make coreless product roll and standard product roll with core.

2.1000mm width model,can produce product roll width within 1000mm.

3.Slitter rewinder model,machine can not only rewind,but also slit rewind.

Machine data:

Machine name: Semi-automatic coreless stretch film rewinder 1000mm width

Machine model:PPD-CSSR1000

Jumbo roll width:max 1000mm

Jumbo roll OD:max 400mm

Jumbo roll ID: 76mm

Jumbo roll loading method:Pneumatic cylinder

Small roll ID: 76/50/38mm(option)

Small roll OD:max 100mm

Small width:max 1000mm

Working speed:max 600rpm/min

Voltage: 220/380/415/450v, 3ph(option)

NOTE: ANY SPECIFICATIONS CAN BE CUSTOMIZED.

Related Product

New model semi-automatic stretch film rewinding machine

PPD-NSFR500

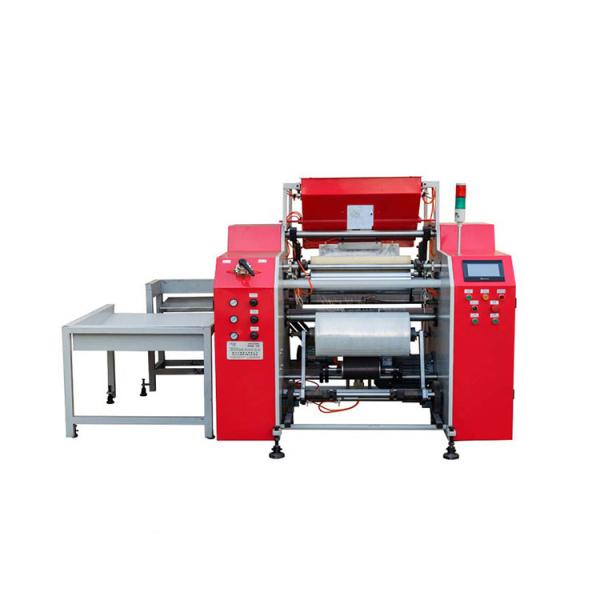

Automatic 4 shafts stretch film rewinding machine
