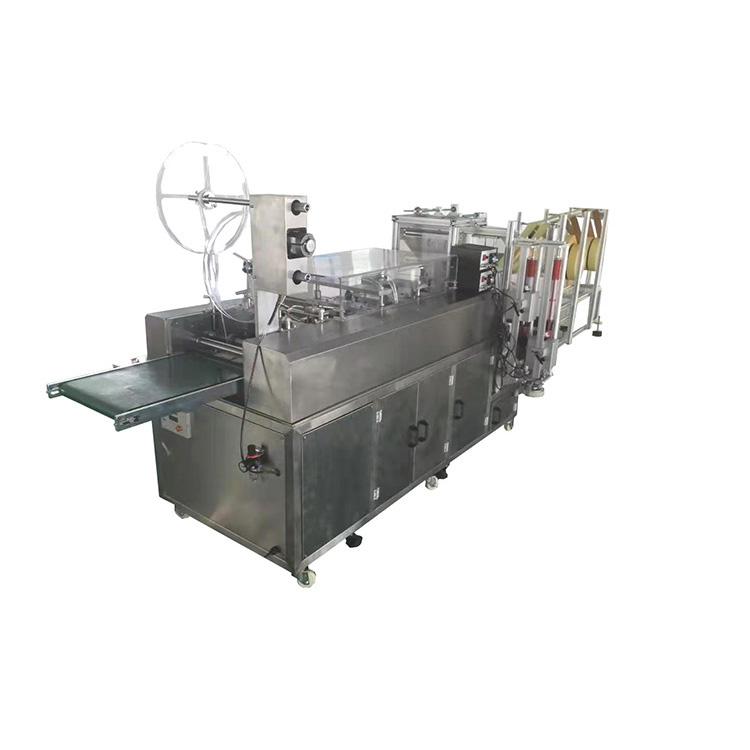

Plaster cutting and packaging machine

  • PPD-PCP80

  • Plaster cutting and packaging machine-two pieces per pack is a new type of plaster pasting packaging equipment that has been optimized and redesigned by our company based on long-term research and development of plaster packaging equipment, combined with the suggestions put forward by a large number of users in use.
    This device automatically slices and packages two patches per bag of plaster.

    Machine process:Plaster roll and packaging film on the machine → Plaster cutting into pieces → Bagging → Packaging sealing → Date printing → Output of packaged finished products (automatic counting)

Video

Features:

1.Color touch screen operation interface is simple to operate

2. Adopting advanced servo drive system with fast speed

3.Independent guide pillar type mold base and mobile synchronous heat sealing system, with more uniform and stable sealing surface temperature, tight edge sealing, and durability. Packaging materials with different thicknesses and materials have a wider adaptability.

4. Easy to tear off holes, butterfly holes, round holes, and other hanging holes are optional


Machine data:

Machine name: Plaster cutting and packaging machine

Machine model:PPD-PCP80

Plaster size:120-220mm(L)*90-165mm(W)

Processing capacity: 40-80 bags/minute

Packaging film materials: Paper aluminum, paper plastic, aluminum plastic, aluminum plated film and other packaging materials, Φ≤ 350mm width ≤ 700mm

Applicable raw materials: paste semi-finished roll materials

Voltage:220v,50Hz (option)

Machine overall dimensions:5500*1300*1600mm(LWH)

Machine packaing size:2600*1900*1800mm(LWH)

Machine weight:1000kg

NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS CUMTOMER REQUEST.




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
