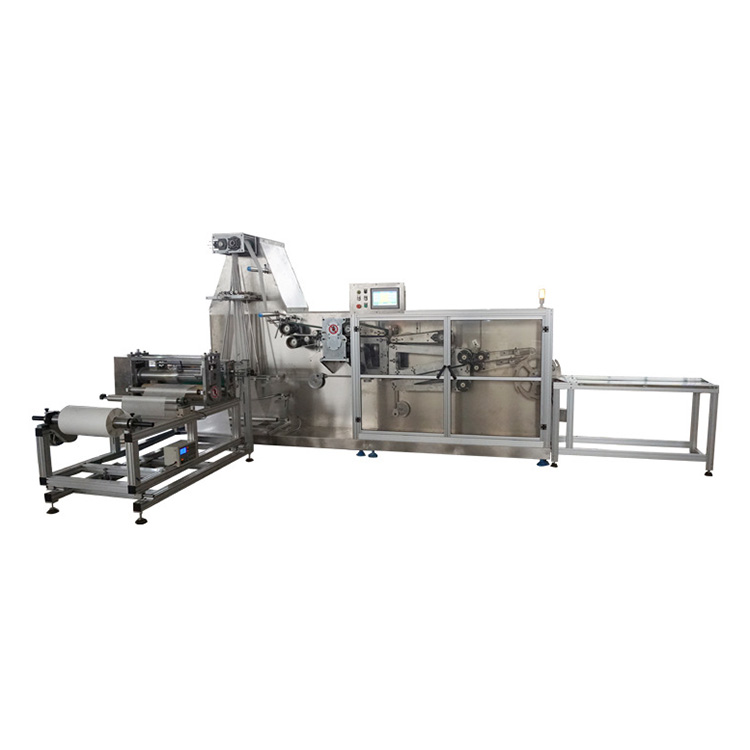

Nonwoven sheet folding and cutting machine

  • PPD-NFM1600

  • Nonwoven sheet folding and cutting machine is new designed model for producing different kinds of nonwoven sheet product after different ways of folding and cutting.
    Machine is customized as buyer requirement.

Feature:

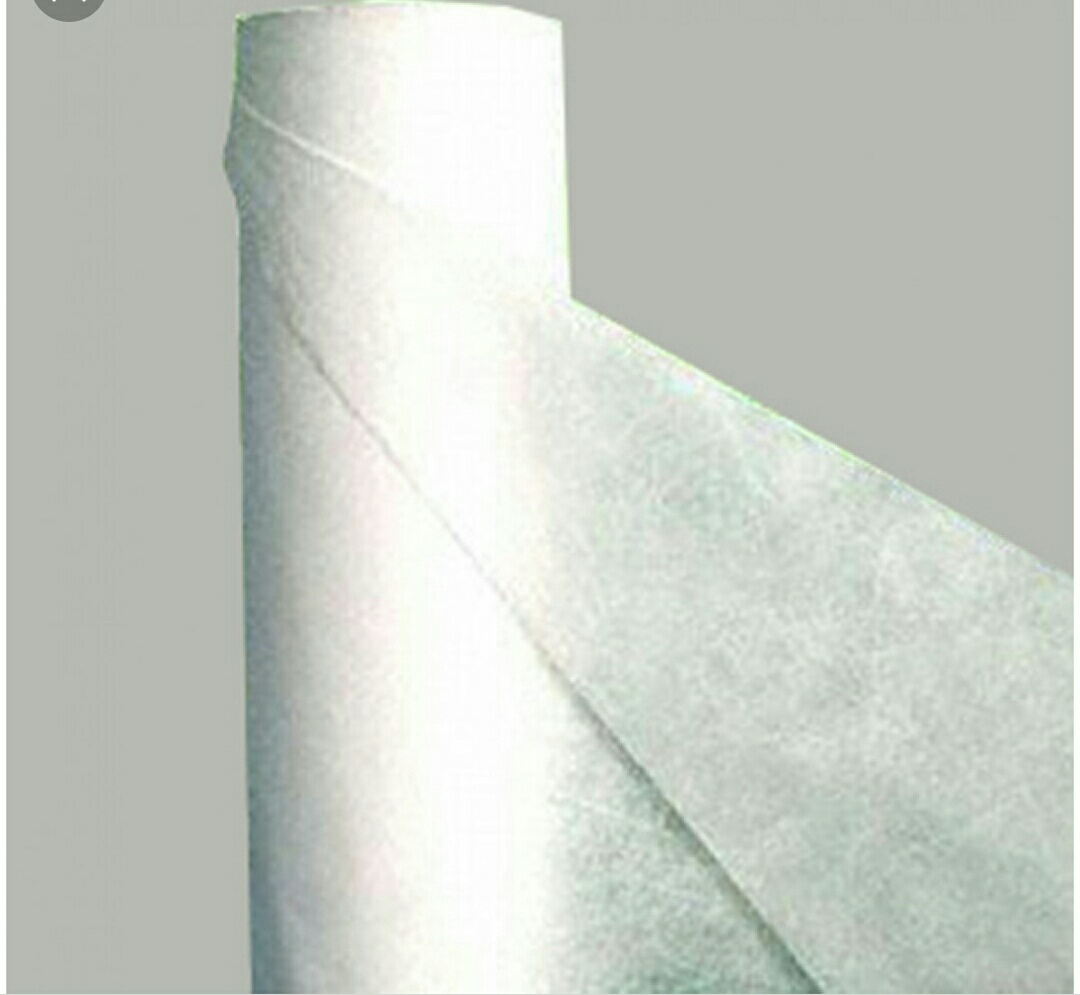

1. Equipment production requirements: The equipment can process all kinds of spunlace non-woven fabrics; needled cloth and other raw materials.

2, the working principle of the equipment: raw material feeding -vertical folding → length automatic cutting → horizontal folding →automatic product output → product stacking.

3, raw material width ≤ 1.6 meters(customized as buyer requirement).

4, the folding width can be adjusted arbitrarily(as bu buyer requirement), the product cutting length can be adjusted max 10meters.

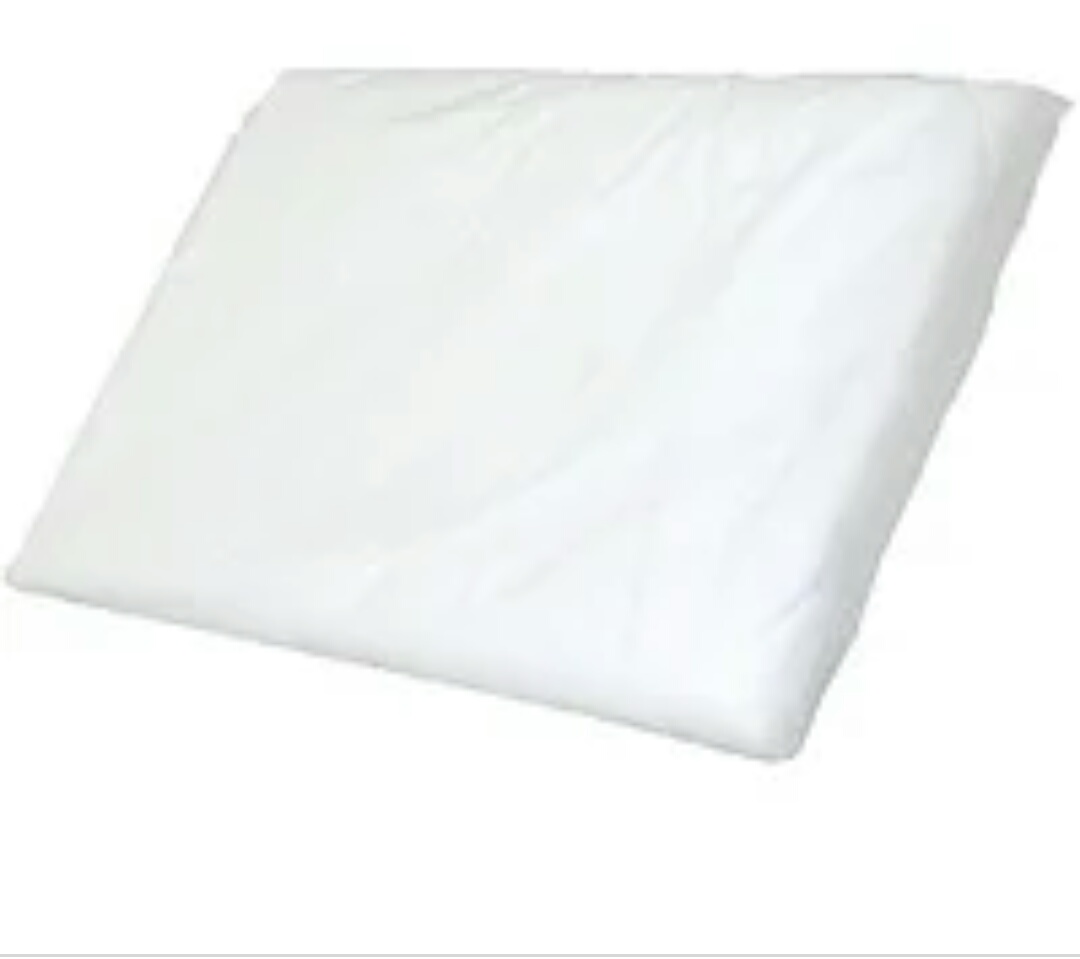

5, the product can be folded in one-third of the horizontal fold,one-half (folded in half), one quarter.

6, the machine uses the cylinder to push the way to automatically feed.

7, automatic magnetic powder tension control system.

8, touch screen control, change specifications only need to enter data, the operation is extremely simple.

9, The complete conveying system of the equipment is firm, durable and pollution-free.

10, electrical parts wiring specifications are reasonable, elegant,stylish, easy to operate.

11, The whole frame adopts high quality steel, the surface is anti-rust treatment, the frame welding size is accurate, the main parts of the standard parts screws are made of domestic high-quality steel and hexagonal screws and high quality bearings,and the countertops are made of stainless steel.


Main Data:

Mother roll width: max 1600 mm

Mother roll OD: max 1200mm

Mother roll core diameter: 76mm

Horizontal folding size: 150-300mm

Horizontal folding times: 4 times

Product cutting length: max 10meters

Folded product size: W 3000mm-L 630mm

Speed: 60-70 m/min

Machine size: L 9m * W 1.5m * H 3.2m

Note:Different specifications can be customized.

Nonwoven folding machine-2.png

Nonwoven folding machine-1.jpg



Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
