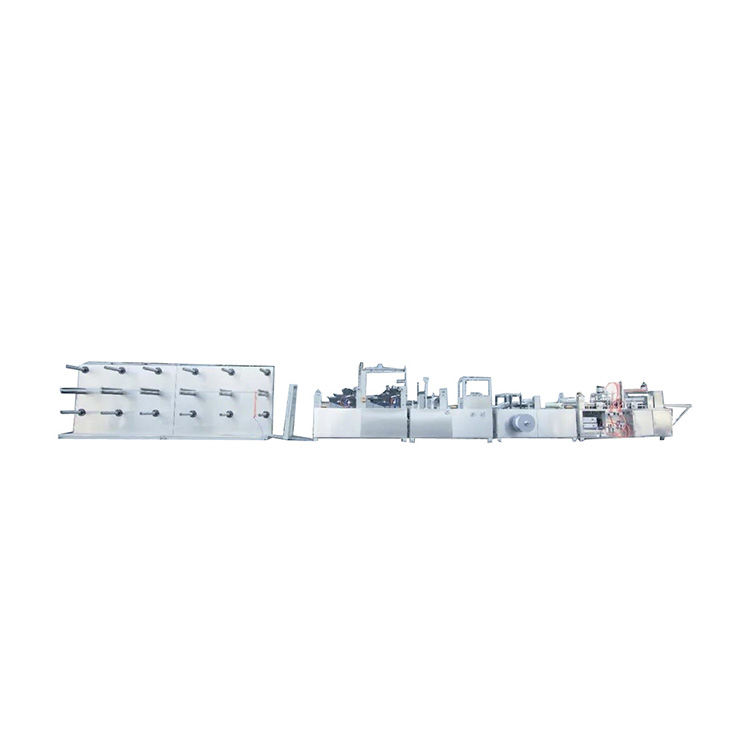

Automatic nonwoven bag making machine

  • PPD-ANB15

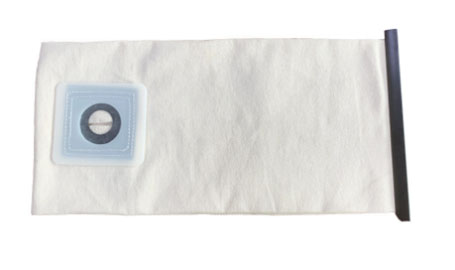

  • Automatic nonwoven bag making machine is a new machine of our company, this machine can produce roll mouth filter bag, gusset filter bag, neatly cut edge, smooth without burr, strong adhesion fastness. The machine is equipped with 4 sets of servo motors and anti-interference system, PLC, touch screen, and imported photoelectric tracking system for joint control and operation.

Video

Features:

1:Machine is equipped with automatic constant tracking and horizontal cutting and conveying system, and is equipped with a gusset folding and forming system, with a set of stainless steel gusset forming molds, and the specifications can be determined on demand.

2: Equipped with an automatic left and right winding and winding waste device, so that the waste can be stacked after being collected.

3: The frame of the whole machine is made of national standard forming steel, the surface is treated with anti-rust spray paint, the welding size of the machine frame is accurate, the bracket is properly reinforced, the pulley, bevel gear and all transmission parts have accurate centerness, and the main gear is divided into pieces, which is convenient for Adjust the gap., to ensure the smooth operation of the machine.

4: The equipment is equipped with 1 set of monochromatic flexographic letterpress printing system (randomly equipped with 1 set of printing plate rollers) to ensure the convenient production of bags with printed patterns.


Machine data:

Machine name: Automatic nonwoven bag making machine

Machine model:PPD-ANB15

Raw material width/diameter: Width≤650MM Diameter ≤900MM

Unwinding device:12 sets of air shaft unwinding (3 inches), single side feeding and rack leakage

Roll-cutting method:The die and the die are controlled independently

Rolling method:Servo control, mold can be changed and equipped with air-conditioning cooling room

Printing Unit:Flexo Letterpress

Ultrasound:adopts frequency tracking mode

Speed:6-15 meters per minute

Bag styles:Flat and gusset pockets

Voltage:380v/50hz/15kw

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
