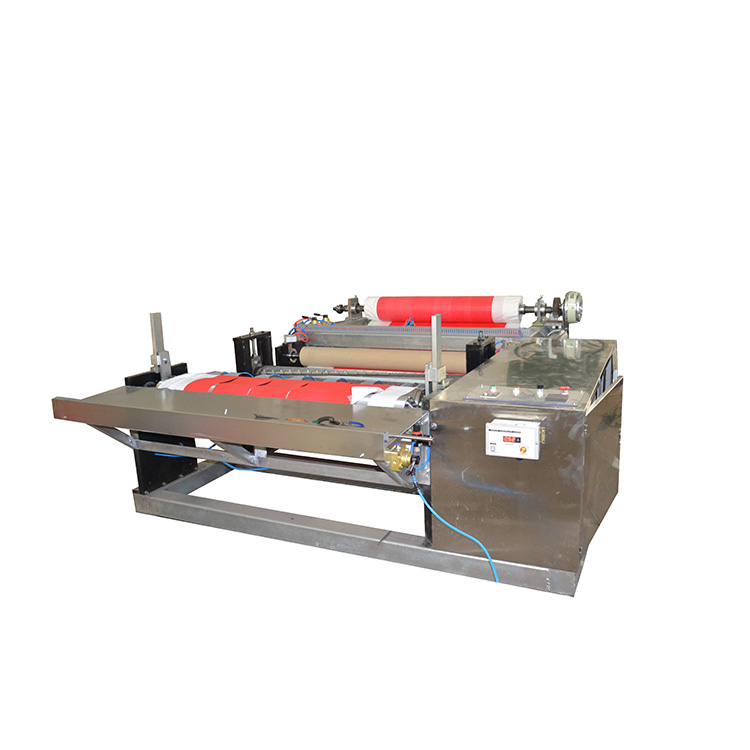

Non Woven Fabric Machinery

Features:

1. Unwinding,perforation,slitting and rewinding are carried out at the same time, and the end surface is neat and smooth.

2. The equipment adopts PLC touch screen control system, which is easy to operate and stable in performance.

4. The equipment is equipped with a pneumatic automatic feeding system, which is simple and convenient.

5. The normal production speed of the machine is 60-200 m/min (machine speed is determined according to the characteristics of various raw materials).

6. The equipment equipped with a servo perforation device, and the perforation distance can be set infinitely.

7. Pneumatic air knife slitting device, the winding is more neat and beautiful.

Processing:

Material loading →Nonwoven perforation→Nonwoven slitting →Coreless nonwoven rewinding →Products.

Mainchine data:

Material:                  non woven fabrics

Mother roll width:          1300mm(customized as buyer requirement)

Mother roll ID:              76mm

Mother roll OD:           max 1200mm

Product roll width:       20mm to max mother roll(adjustable)

Product roll ID:            38mm coreless(customized)

Product roll OD:           max 600mm

Speed:             60-200m/minute(according to the raw material)

Total power:                3kw

Voltage:                    220/380/415/450v,3ph

NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS BUYER REQUIREMENT

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
