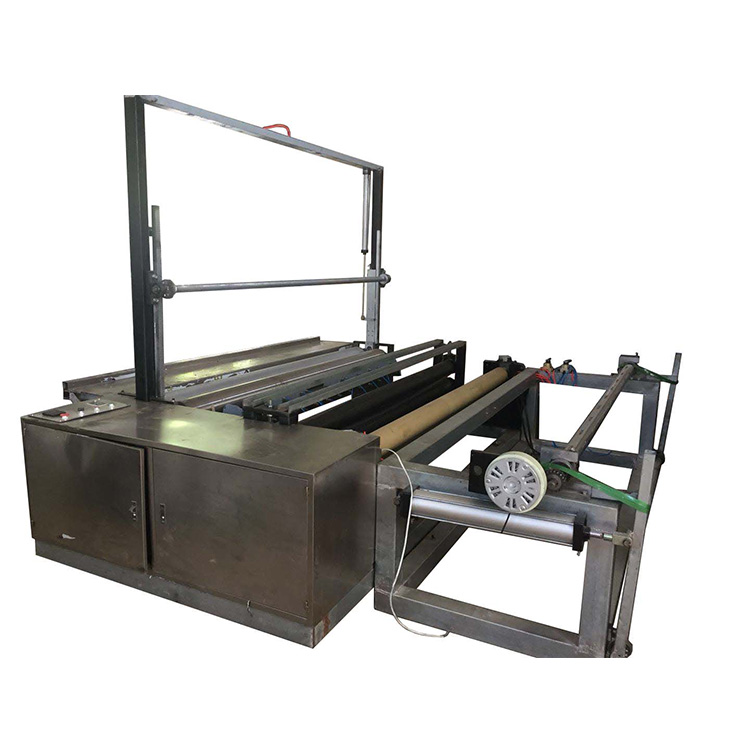

Nonwoven fabrics perforation slitter rewinder

  • PPD-NPSR1600

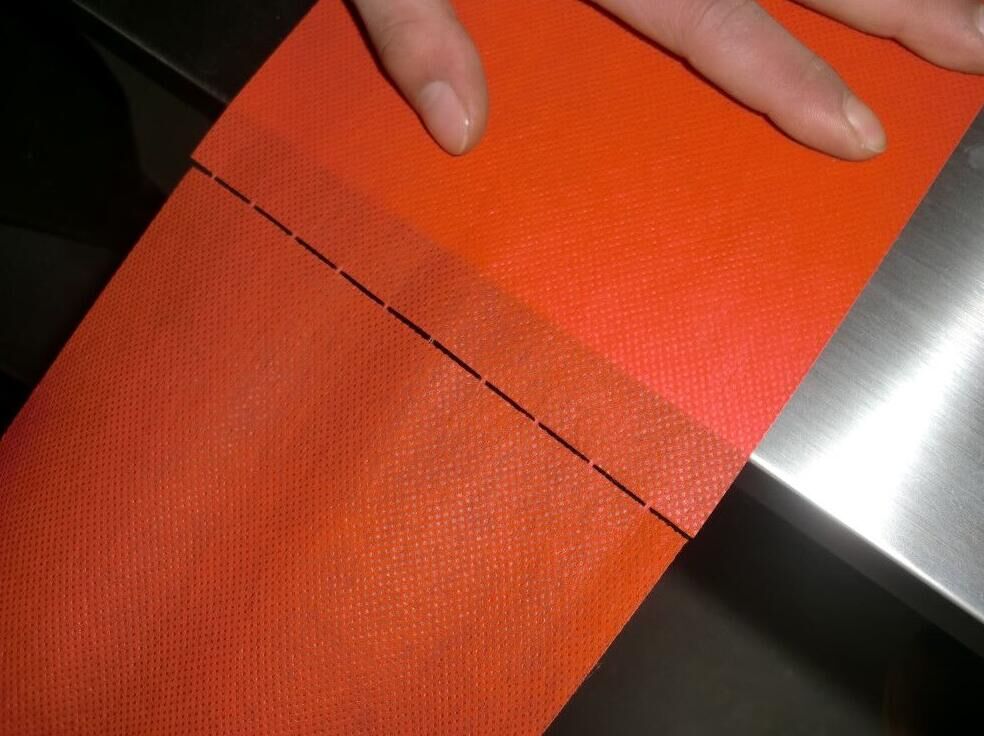

  • Nonwoven fabrics perforation slitter rewinder is new designed model for the production of non-woven fabric rolls with dotted lines.
    Raw material can be medical nonwoven,spunlace nonwoven,viscose nonwoven,PP nonwoven,pet non woven rolls,needle punched nonwoven,gauze rolls etc..
    Machine width can be customized as buyer requirement,like 800,1300,1600,2500,3500mm etc..
    This machine can also produce the normal nonwoven product rolls.

Video

Features:

1.Automatic tension control system.

2.Pneumatic slitting knife system,easy to operate.

3.Meter counting system.

Processing :

Material loading →Nonwoven perforating→Nonwoven slitting→Nonwoven rewinding →Products


Machine data:

Machine:Nonwoven fabrics perforation slitter rewinder

Model No:PPD-PNSR1600

Suitable material:Medical nonwoven,Gauze,spunlace nonwoven,viscose nonwoven,needle punched nonwoven etc.

Parent rell width:800,1300,1600,2500,3500mm etc.

Parent rell inner diameter:76.2mm(3inch)

Production speed:50-200 m/min

Worker required:1

Power consumption:4.0Kw

Voltage:380V,50/60Hz(option)

Air supply:0.6-0.8 Mpa

Machine dimension:(L4300*W2500*H2300) MM

Gross weight:1600Kg

Machine floor area≈20㎡

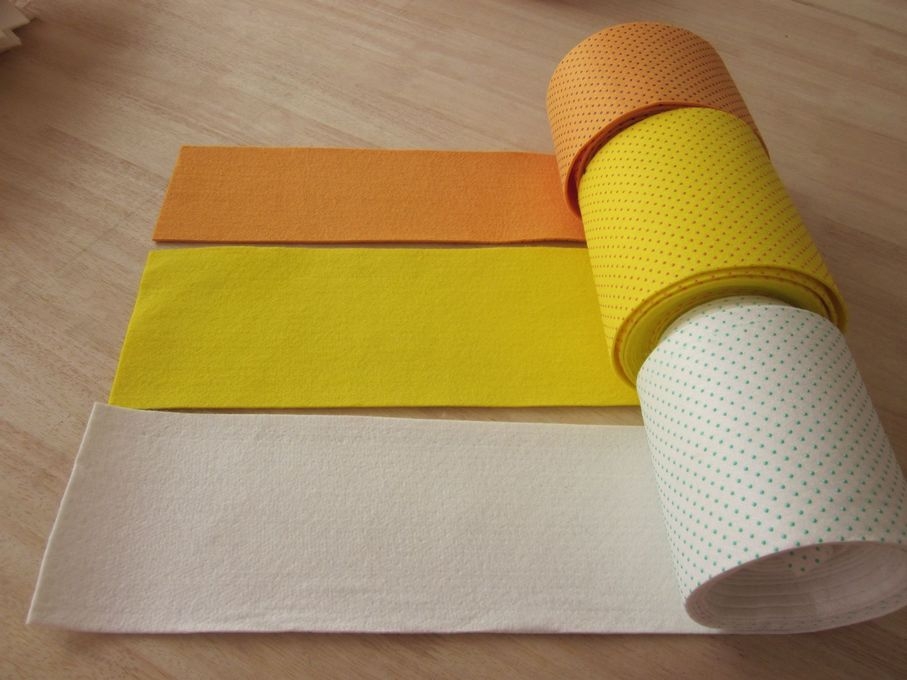

Perforation Nonwoven Fabric-Jiaxing Patsons Machinery.jpg

KINAN DONGKAI NONWOVEN HYDROPHILIC FSBRICD 03.JPG




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
