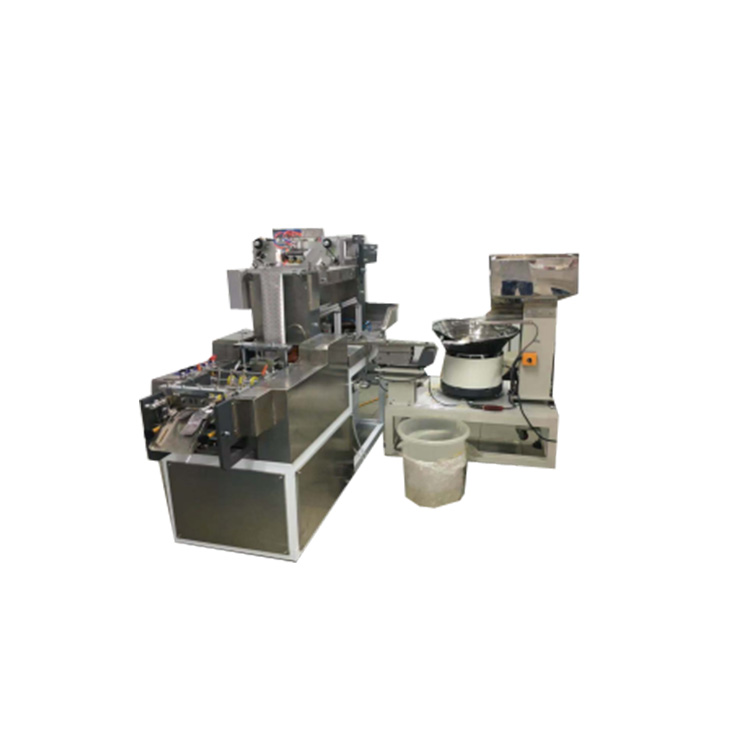

Full automatic Condom paking machine

  • PPD-FCP50

  • Full automatic Condom paking machine is a new product with high degree of automation specially designed for condom factory, health product factory and hospital preparation room. It is especially suitable for the production needs of various products. The machine adopts microcomputer programming control, frequency control, touch panel operation. Feeding, heat sealing, oiling, package cutting, batch marking and other processes are completed continuously and automatically. It is an ideal condom packaging equipment with convenient operation and complete functions. The products have passed the provincial scientific and technological achievements appraisal.

Video

Features:

1.The main transmission part adopts parallel shaft helical gear reducer, which has novel structure, stable operation, long service life and low noise.

2. The heat seal, cutter and other parts can move freely to adjust the distance, and the calibration is convenient and simple.

3. Polyurethane wear-resistant wheel traction, adjustable travel, can adapt to a variety of size plate packaging.


Machine data:

Machine name: Full automatic Condom paking machine

Machine model:PPD-FCP50

Cutter frequency (times / min):10-50

Production capacity (pack / hour):5000-6500

Travel range (mm):55-63(can be customized)

Standard block (mm):60×60(can be customized)

Air pressure (MPA):0.5-0.6

Air flow≥0.15m3/min

Machine Dimension:2300×680×1410(L×W×H)

Machine Weight:600KG

Machine Packing: Wooden Case

Voltage: /220V    50Hz  2.6KW

Powder:0.75KVA

PTP foil (mm):0.02-0.035×130

Film Thickness:0.06-0.08mm

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
