Printing Machine

Features:

1. Simple operation, accurate color registration and long service life.

2. Adopt frequency converter speed regulation, and the running fluctuation is small.

3. It adopts helical gear synchronous belt transmission, stable operation and low noise.

4. Unwinding correction uses photoelectric correction control system.

5. Machine works with ceramic anilox roller, high-speed dot reproduction rate is high, and screen printing is well-defined.

Main technicial data:

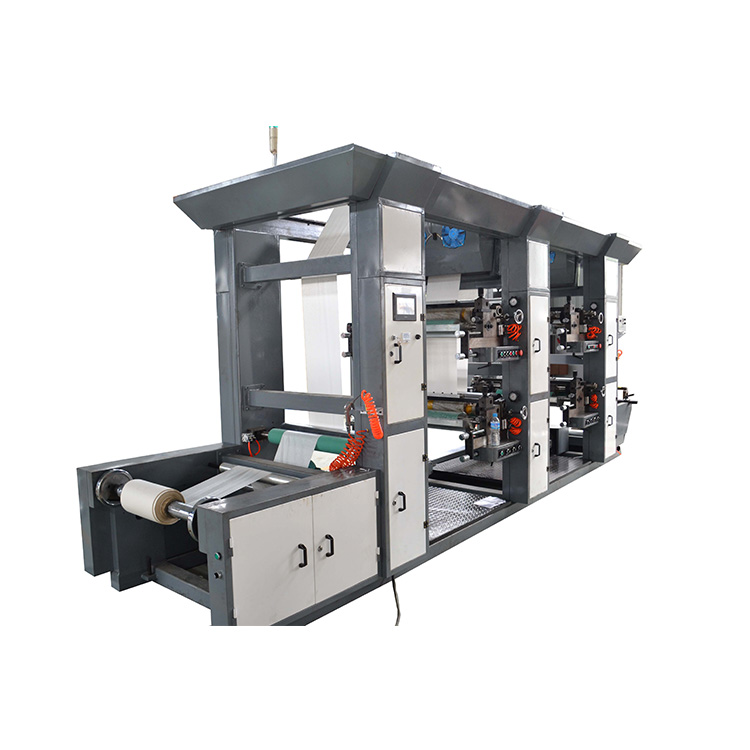

Name:Flexo Printing Machine

Model:PPD-FPM700

Paper requirement:30-300gsm

Raw materials maximum roll width:700mm

Raw material roll diameter- 800mm

Printing width:max600mm

Printing length range: 190-910mm

Diameter of rubber plate:75-350mm

Production speed:max80m/min

Precision of printing plate-0.3mm

Total power:17kw

Weight of machine :3750kg

Machine dimension :5200*1800*2600mm(L x W x H)

Packing for shipment：Packing in standard export wooden case.

NOTE:2colors,4colors,6colors can be optional.

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
