Aluminium Foil Machine

Features:

1:The color box cardboard is automatically divided and transported, sequentially from the bottom to the bottom. Manual feeding from above the storage bin, automatic feeding of cardboard without stopping the machine.

2:The conveyor, in conjunction with the feeding device, automatically transports cardboard, guiding and positioning the cardboard for transportation. Accurate positioning is achieved at the binding station below the mold.

3:The raw material roll of the tin saw blade is automatically fed by the feeding machine. Set parameters according to production needs.

4:Hydraulic power drives the upper and lower punching of the mold, and simultaneously binds the tin saw blade to the required position on the colored cardboard box.

5:Automatic sensing device, the color box paper is sprayed with hot melt adhesive(hot melting glue) by photoelectric counting and automatic sensing during the conveying process.

Technical data:

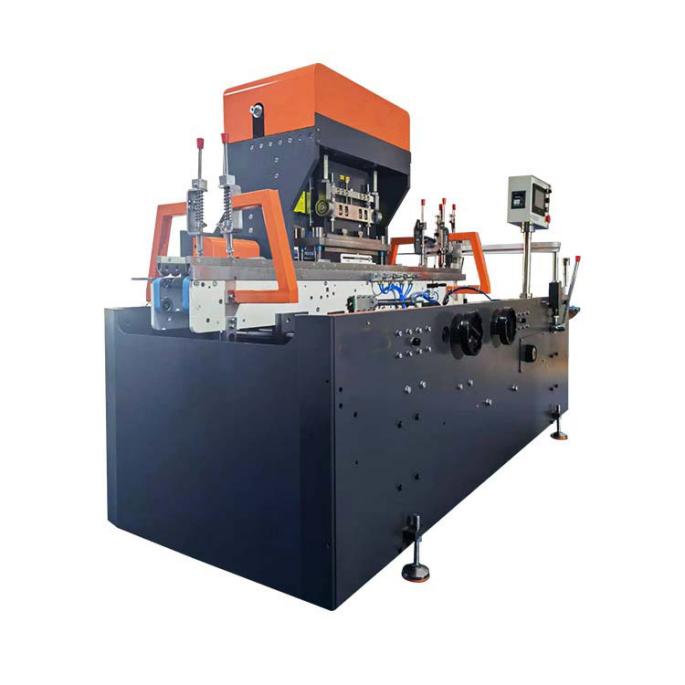

Machine name:Automatic metal blade fixing machine and pvc roll attaching 2in1 machine

Model:PPD-MBFPA80

Suitable raw material:tinplate roll,aluminium roll,steel roll,PVC roll,paper roll

Production ability: 30pc/ min - 80pc/ min

Saw blade length: 300-450mm,

Saw blade width:8-14mm

The position of the blade is ≦90mm from the side of the tray

Saw position：＋0.3mm

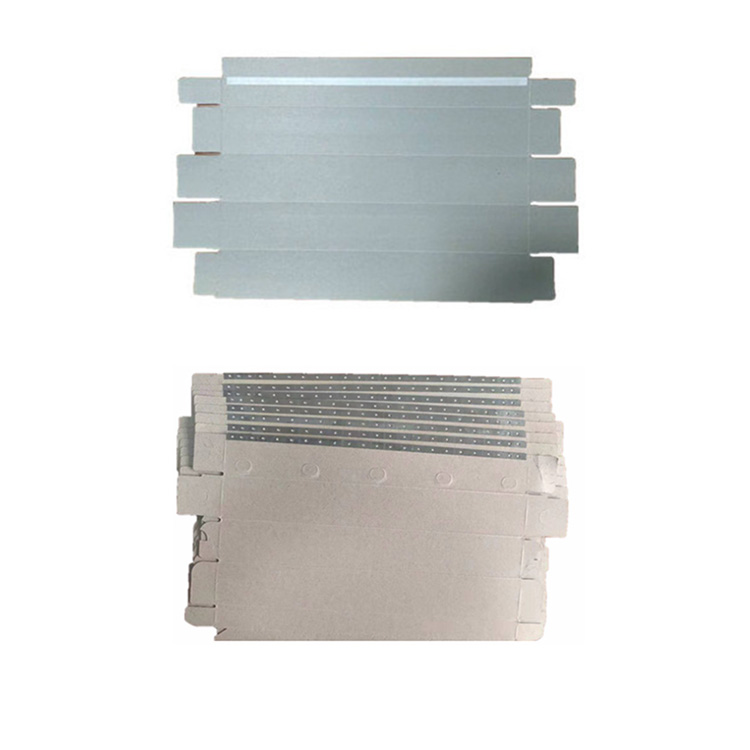

Cardboard size (without tongue)：L300-460mm,W235-330mm(can customized as buyer requirement)

Voltage: 380V,50hz

Total power:7.5kw

Machine size: 2600*1500*1600mm(LWH)

NOTE:ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
