Automatic Packaging Line

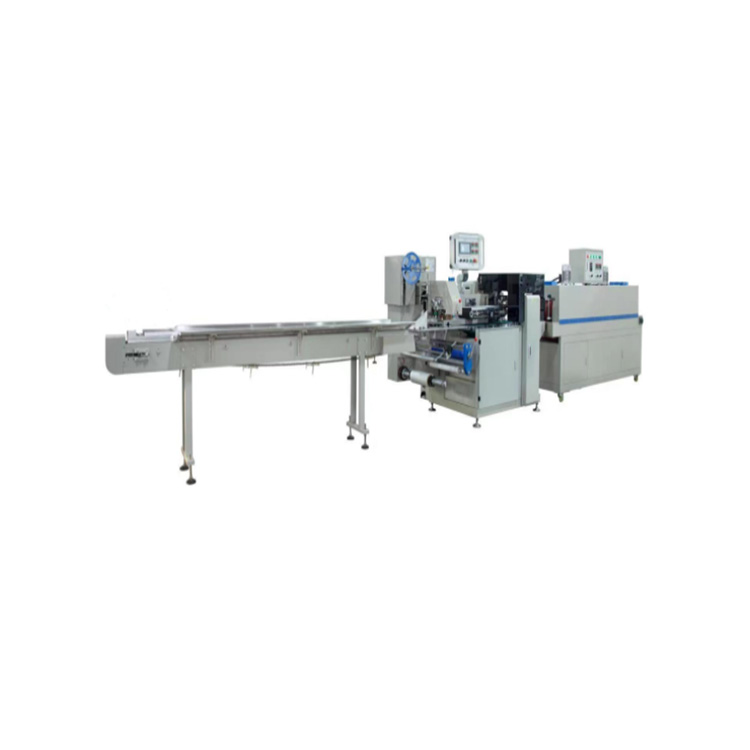

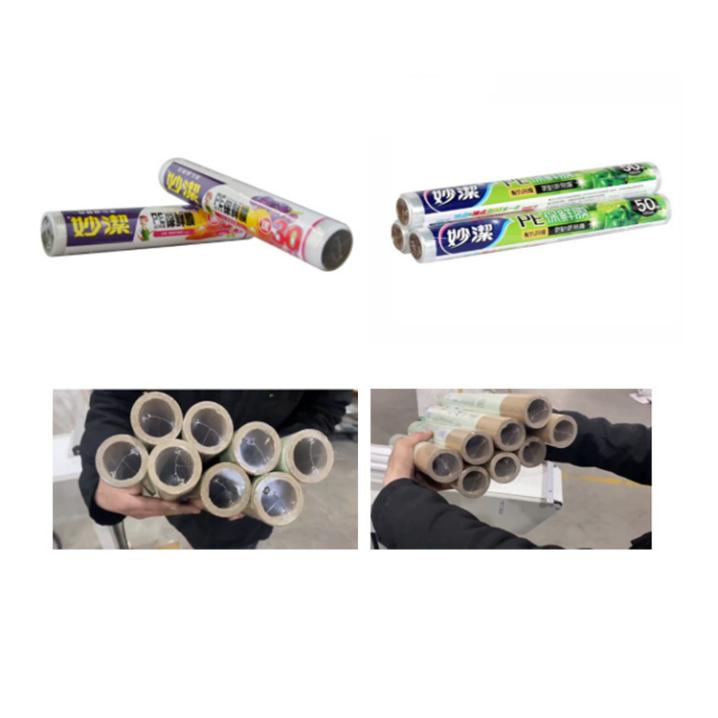

Automatic aluminum foil roll cling film roll baking paper roll shrink packaging machine is full automatic shrink packaging equipment developed by our company based on our packaging technology and rewinding technology, combined with customer requirements.This device is capable of automatic unloading of instruction manual paper,automatic unloading of product rolls (aluminum foil rolls,cling film rolls,baking paper rolls, etc.),fully automatic packaging and cutting,and automatic shrinking product conveying to finished products.

In addition to automatic shrink packaging for aluminum foil rolls,cling film rolls, baking paper rolls,it can also shrinking package regular products such as dry paper rolls,garbage bags,cling bags,and facial tissue rolls etc..

Features:

1.Machine is driven by three servo motors,with simple operation,high stability, and high packaging efficiency.

2.The reciprocating transverse sealing knife seat design has a beautiful appearance and good sealing performance.

3.High sensitivity photoelectric eye color marker tracking,mathematical input of sealing and cutting position,making the sealing and cutting position more accurate.

4.Static adsorption can be used instead of heat sealing cutting for side sealing, saving packaging film costs and making the sealing line smoother and more beautiful.

5.Temperature independent PID control,more suitable for various packaging materials.

Machine data:

Machine name:Automatic aluminum foil roll cling film roll baking paper roll shrink packaging machine

Machine model:PPD-SPM590

Max packaging film width:590mm

Packaging film ID:3inch(76mm)

Inisde roll size:width max 450mm,OD max 130mm

Packaging speed:30-60pcs/min

Pakcaging film type:POF film

Power:Packaging part:4.75kw;Shrinking part:13.5kw

Voltage:220/380/415v,3ph

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
