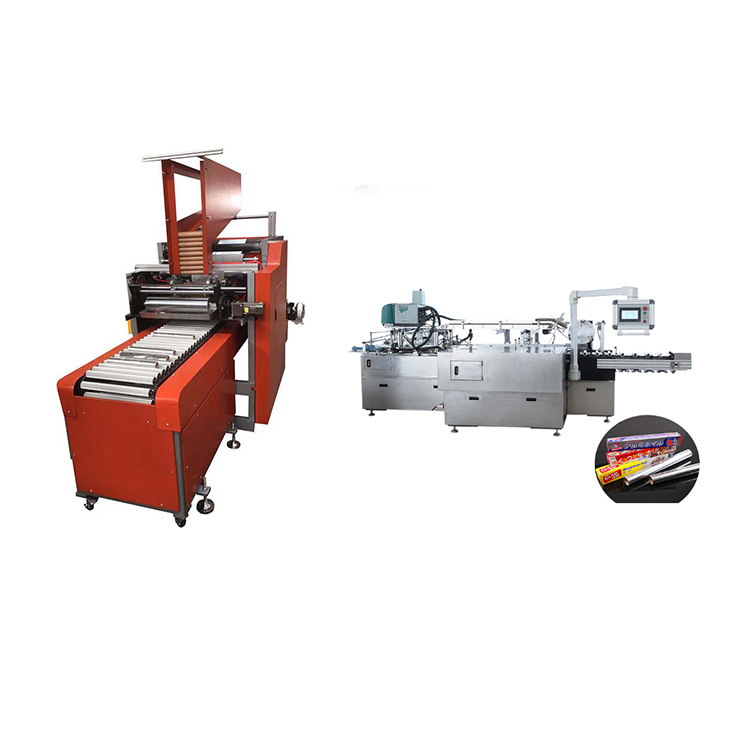

Automatic aluminium foil roll production machine is one of the turnkey production line of kitchen foil roll.It is consist of automatic aluminium foil rewinding machine and automatic aluminium foil roll cartoning machine.

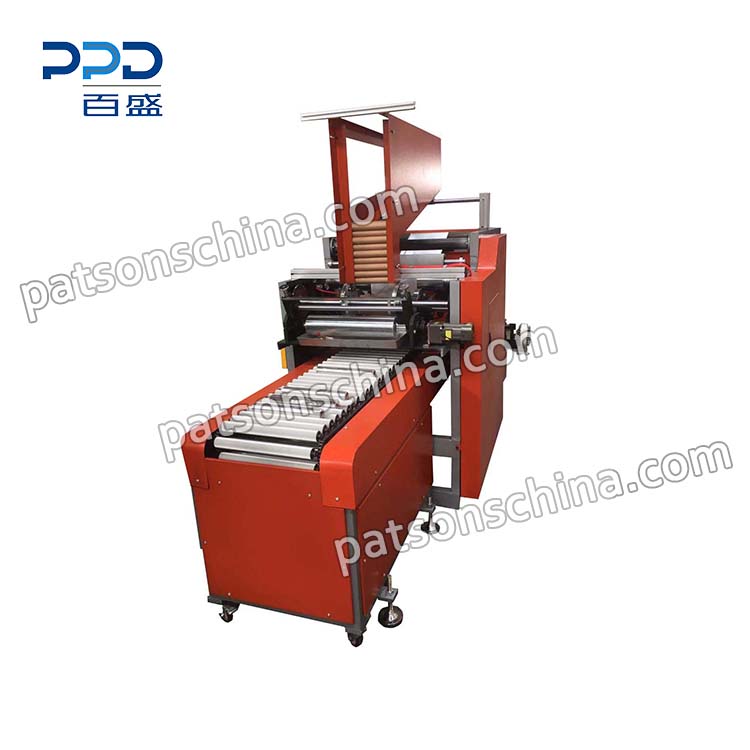

I. Automatic aluminium foil rewinding machine
Main data:
Material thickness: 9-20mic
Jumbo roll air shaft size: 76 mm or 152mm (optional)
Finished product roll width: max450mm
Finished product roll paper tube inner diameter: 25, 30, 35, 38, 40mm
Finished product roll length setting:5-150m
Production speed: 150rpm/min
Total power: 4kw
Voltage: 380v, 50hz, 3 ph
II.Automatic Cling Film Roll Cartoning Machine
Main data:
Model:PPD-CM100
Max carton size:350*60*60mm(L*W*H)
Min carton size:150*30*30mm(L*W*H)
Available paper:≥350 G/SM
Noise:≤80db
Production speed:≤100 pc/min
Temperature:25± 10℃
Voltage:380V, 60Hz
Max power:4.0Kw
Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
