4 Side Seal&Pack Machine

Working process:

Put the plaster on the conveyor belt →plaster it into the bag→make the bag→ seal it→cut bag off→output the packaged finished product

Features:

1.Continuous feeding of materials is stable (without pause).

2.The continuous operation tension of the packaging film is stable (without stopping).

3.A new reciprocating flat pressure heat sealing system with guaranteed sealing.

4.Fully servo driven,PLC parameter setting,easy to operate.

Machine data:

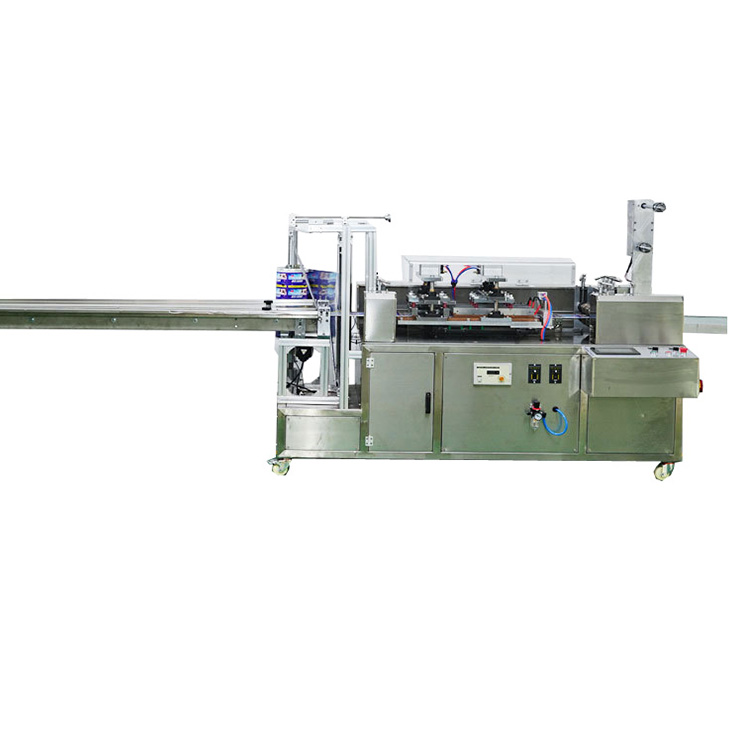

Machine name:4-Side sealing plaster packaging machine

Machine model:PPD-PPM80

Inside plaster sizes:L 70*W 40mm.( customer sizes)

Outside bag sizes:L 90-200mm*W 60-150mm.( customer sizes)

Production speed:40-80 bags/minute

Packaging film sizes:OD max 350 mm,width 700 mm,ID 76.2mm

Suitable packaging film:Paper aluminum-plastic,pure aluminum,aluminum plating,pearl film,coated paper etc.

Total power: 220V, 50Hz,motor 2.2kw,heating 3.3kw

Weight: 600 kg

Packing size: 2200mm*1500mm*1500mm(LWH)

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
