Label sticker die cutting machine
-
PPD-DC320
-

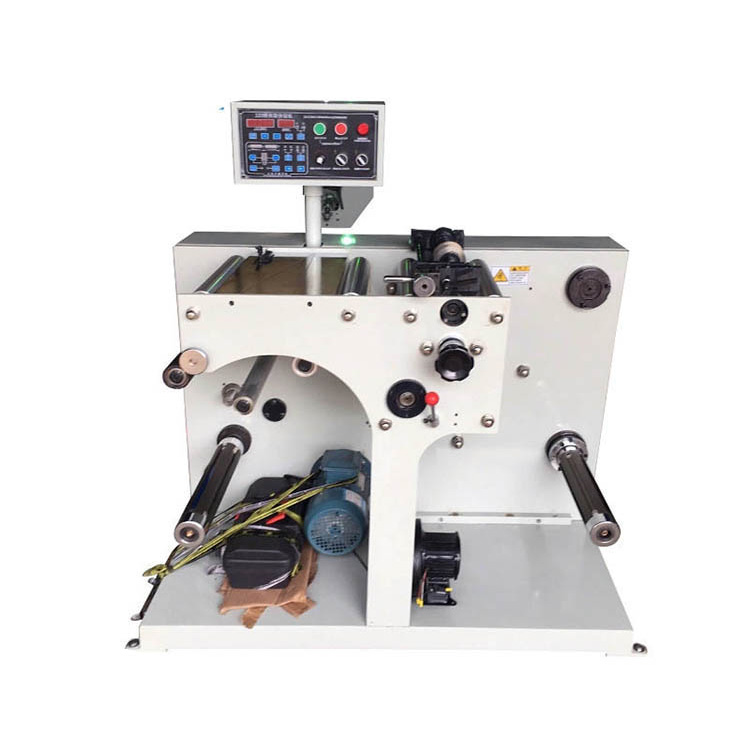

Label sticker die cutting machine is a new type of slitting machine with die cutting function, which has a high-precision round cutter die-cutting system. This machine can be used for die cutting and slitting at one time. It has automatic meter counting and automatic shutdown. Photo-eye correction and other functions. This machine is characterized by compact structure, fast speed, high efficiency, simple operation and stable operation.

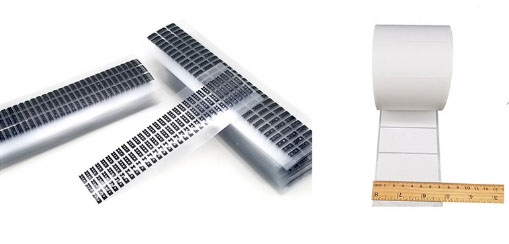

This machine is suitable for die cutting and slitting of self-adhesive label sticker, label,label sticker,paper,film(PET,PC,PE),non-woven fabric,foam, double-sided tape,copper foil,aluminum foil and various reel materials. It is widely used in printing, packaging,3C electronics,leather,clothing, plastic and other industries.
Video
Features:
1. Compact structure and small floor area.
2. Simple operation, fast speed and high output.
3. Automatic meter counting and automatic stop function.
Machine data:
Machine name: Label sticker die cutting machine
Machine model:PPD-DC320
Cutting speed:120 m/min
Cutting accuracy:±0.1
The maximum diameter of unwinding:600mm
Maximum diameter of double winding:300mm
Maximum diameter of lower winding:600mm
Voltage:220/380/415v,50Hz (option)
Power:3kw
NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS CUMTOMER REQUEST.
