Paper Roll Slitter Rewinder

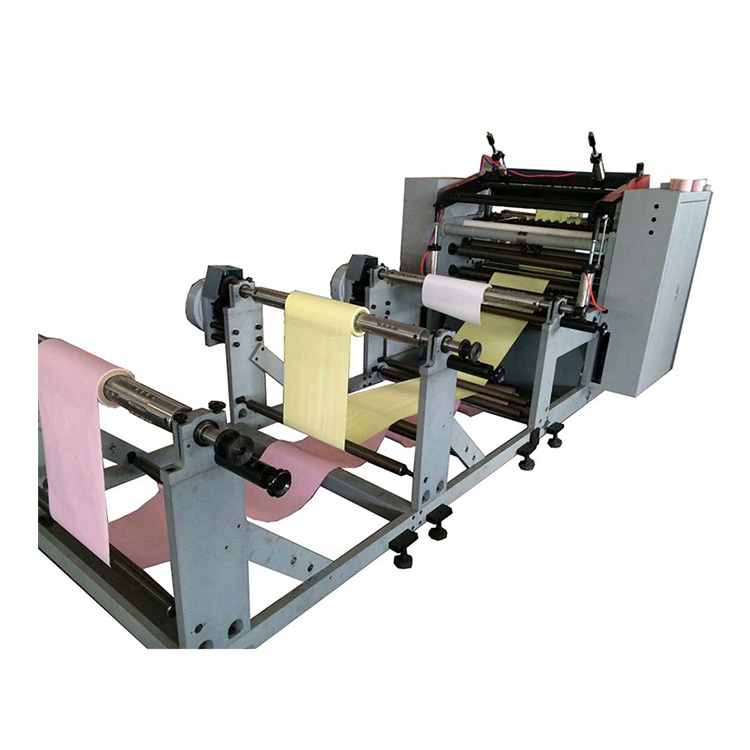

Automaitc 3 ply carbonless paper slitter rewinder
-
PPD-3Y800
-

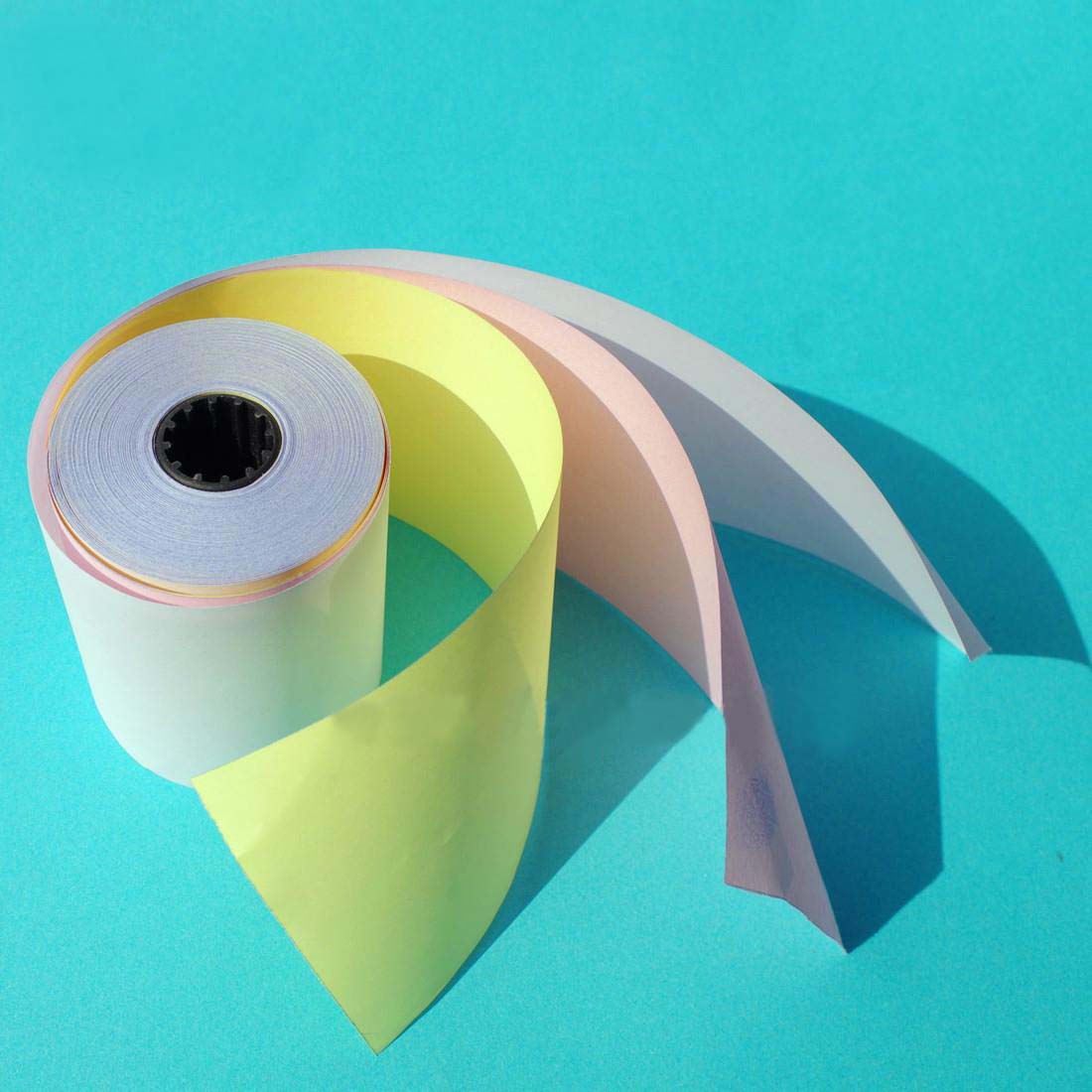

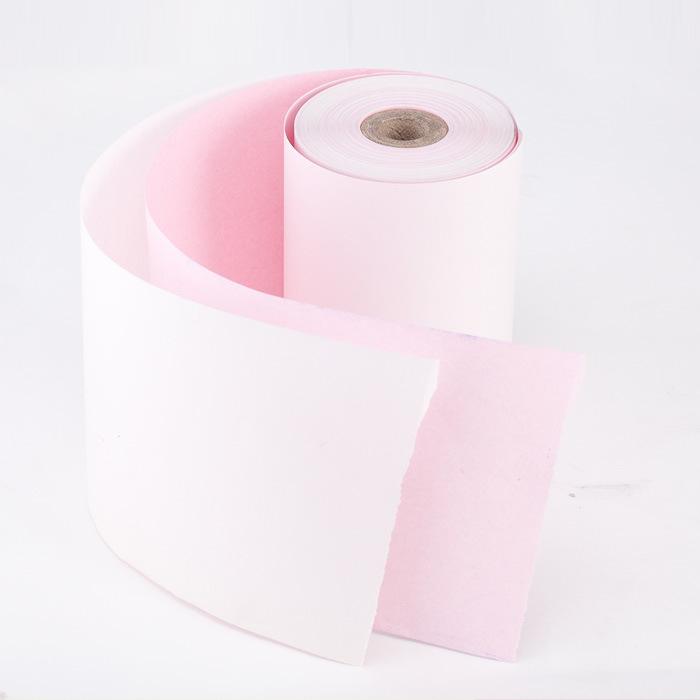

Automatic 3 ply carbonless paper slitter rewinder is new designed model to slit rewind jumbo roll to 3 ply small product carbonless paper roll,ECG roll,NCR roll,ATM roll,thermal roll,pos roll,cash register roll,recoed paper,lottery ticket roll, doctor exam, pressure sensitive labels, credit card receipt paper, fax paper, computer bill, medical record paper roll,car parking receipt roll etc..
Machine is adopt the surface rewinding, automatic replicate,automatic insert reel.
This model can do 1ply thermal paper slitter rewinder and 2 ply thermal paper slitter rewinder,3ply thermal paper sliiter rewinder of different raw material loading.
Video
Features:
1:Siemens PLC touch screen HMI,easy to operate
2:Automatic meter counting,once reach the setting meters,automatic stop
3: Tension force is controlled by the Programmable Logic Controller.
4: Automatic magnetic powder brake system.
5:Automatic raw material loading with individual motor control
Machine name: Automatic 3 ply carbonless paper slitter rewinder
Machine model:PPD-3Y800
Max mother roll width:800mm(900mm option)
Max mother roll diameter:1000mm
Mother roll inner diameter:76mm(3inch)
Material loading: Air shaft
Product roll inner diameter:12,15,18mm (option or as buyer requirement)
Product roll outer diameter:max 180mm
Product standard slit width:56mm/79mm(or 57mm/80mm)
Max rewinding speed:150m/min
Voltage:220/380/415/450v,3ph(option)
