4 Side Seal&Pack Machine

Full process:

Manual placement → insert to bag → bag making → sealing → cutting → transporting the packaged product

Features:

1: The color touch screen operation interface is simple to operate; the scientific 4-axis servo drive system is adopted; the PLC programmable controller intelligently controls the operation of the whole machine.

2: Innovative design: independent guide pillar mold base, mobile synchronous heat sealing system, the temperature of the sealing surface is more uniform and stable, the sealing edge is tight, and it is durable.

3: Standard sterilization bag type: herringbone bag shape, easy to tear opening at the end; glued paper + transparent film or glued paper + coated paper for general purpose bag making. :

4: Special heat sealing mold for sterilization bag: The mold of this machine adopts precision template and CNC processing, and the sealed bag shape is processed at one time. The sealing frame has good sealing performance, and the peeling degree can easily reach the standard.

Machine data:

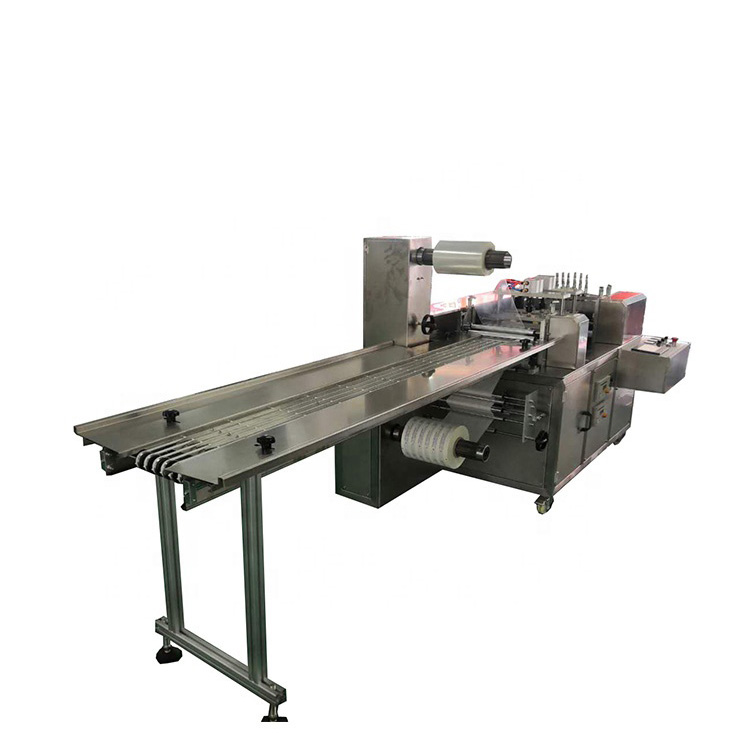

Machine name: Four side seal glove packaging machine

Machine model: PPD-FSGP80

Packaging film: transparent film + coated paper (dialysis paper) or coated paper + coated paper

Packaging film width:max width 320mm

Packaging film ID: 76mm

Product size:L 300mm,W 130mm(as buyer requirement)

Speed:80pcs/min

Total power:  motor 2.2KW heating 3.3KW

Voltage:220v 50Hz

NOTE: ANY SPECIFICATIONS CAN BE CUSTOMIZED.
