4 Side Seal&Pack Machine

Feature:

1. Bag making, measuring, filling, sealing, cutting and counting are fully automatic.

2. Computer-controlled stepper motor pulls the bag, no matter whether the bag is made to length or the cursor is tracked to make the bag, it can be set and cut immediately.

3.Temperature independent PID control, better suitable for various packaging materials.

4.Optional devices: Ribbon printer, inflation device, exhaust device, horizontal sealing and punching device, rotary cutter, small cutter, forming device beating device, batch cutting pneumatic cutter.

5. The transmission system is scientific and concise, the work is more reliable, and the maintenance is more convenient.

Mainchine data:

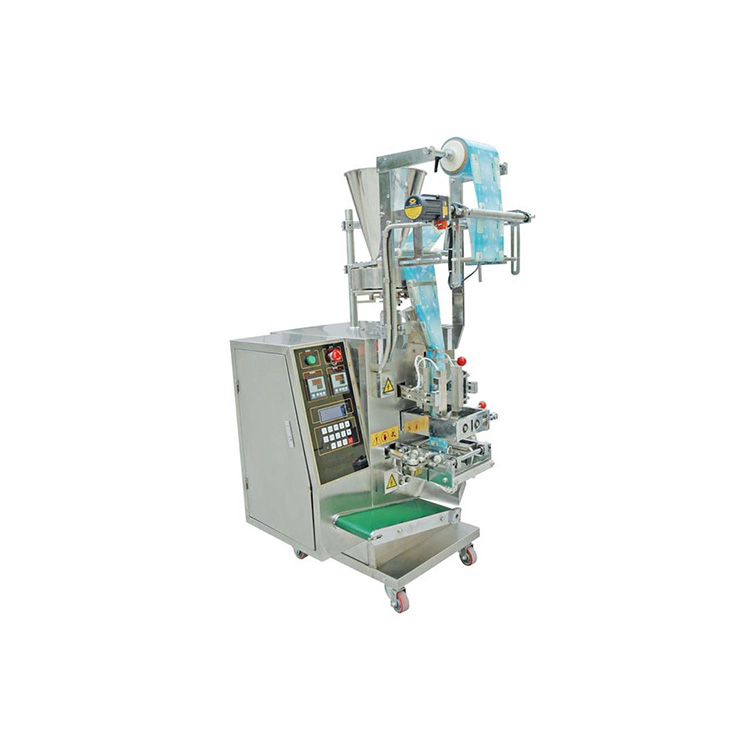

Machine name: Antibacterial gel packing machine

Model:PPD-AGP60

Suitable raw material film: PET/PE or PET/AL/PE or PET/CPP or PET/AL/CPP etc.

Raw material film size:max240mm

Raw material film inner diameter :76mm(3inch)

Finished bag size:Standard bag length 10-150mm adjustable

                              Or Standard bag length 10-120mm

Measuring range:1-20 grams; 5-30 grams or 20-100 grams

Metering method:Rotary valve pump metering

Speed:35-60 packs/min

Power supply voltage/power:220v/1900w

Dimensions: 830*650*1900mm

Equipment weight: 260 kg

NOTE:ANY SPECIFICAITONS CAN                                                                                                                                                                                                                               BE CUSTOMIZED AS BUYER REQUIREMENT

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
