Paper Roll Slitter Rewinder

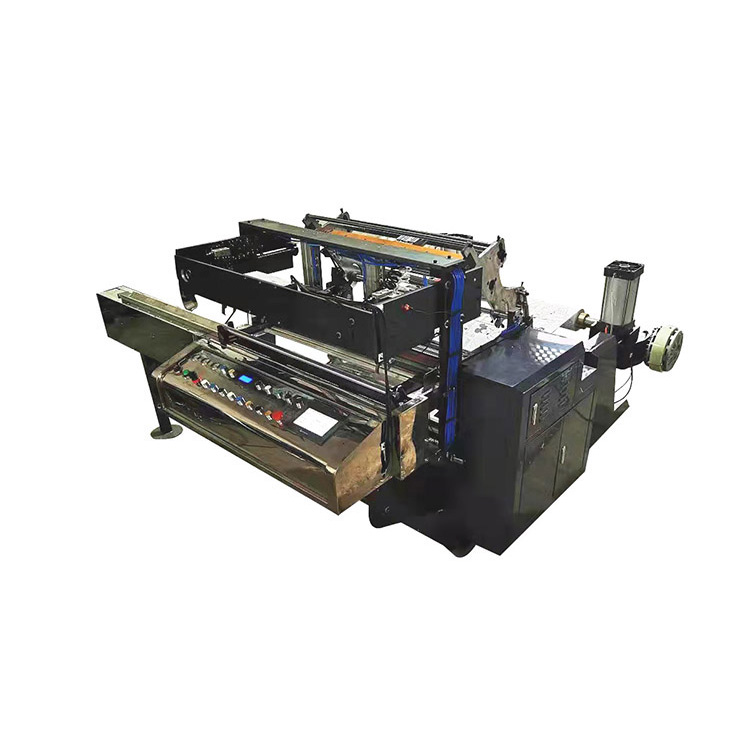

Automatic coreless thermal paper slitting rewinding machine with auto arm system
-
PPD-ACSR700
-
Automatic coreless thermal paper slitting rewinding machine with auto arm system is our newly designed automatic machine. The auto arm system changes the mandrel, and the product is automatically taken out after the slitting rewinding is completed. The machine operation process is fully automatic, without manual operation. Workers only need to do the products packing.
It is very suitable for the production of coreless products such as cash register paper, ATM paper, and computer receipt paper etc..
Video
Features:
1: Auto arm system, simple, convenient and safe.
2:Mechanical automatic paper insertion up and down, automatic marking.
3: PLC and color display data setting, the machine setting is simple.
4:Machine parts are processed by CNC, with reliable performance, simple operation and high production efficiency.
Machine data:
Machine name: Automatic coreless thermal paper slitting rewinding machine with auto arm system
Machine model:PPD-ACSR700
Jumbo roll width:max 700mm
Jumbo roll OD:max 600mm
Jumbo roll ID: 76mm
Product roll ID: 8/10/18mm(option)
Product roll OD:max 180mm
Product width:57/80mm(option)
Speed:max 180rpm/min
Voltage: 220/380/415/450v, 3ph(option)
NOTE: ANY SPECIFICATIONS CAN BE CUSTOMIZED.
