4 Side Seal&Pack Machine

Features:

1.Servo motor,PLC control,bag length can be set and cut immediately,no need to adjust empty running,one step in place,saving time and film.

2.Human-machine interface,convenient and quick parameter setting.

3.Fault self-diagnosis function,clear fault display.

4.High-sensitivity photoelectric eye color mark tracking,digitally input sealing and cutting position,making sealing and cutting position more accurate.

5.Independent PID control of temperature,better suitable for various packaging materials.

6.Positioning stop function,without sticking the knife or wasting film.

7.The transmission system is simple,the work is more reliable,and the maintenance is more convenient.

8.All controls are realized by software,which is convenient for function adjustment and technology upgrade,and never lags behind.

Machine data:

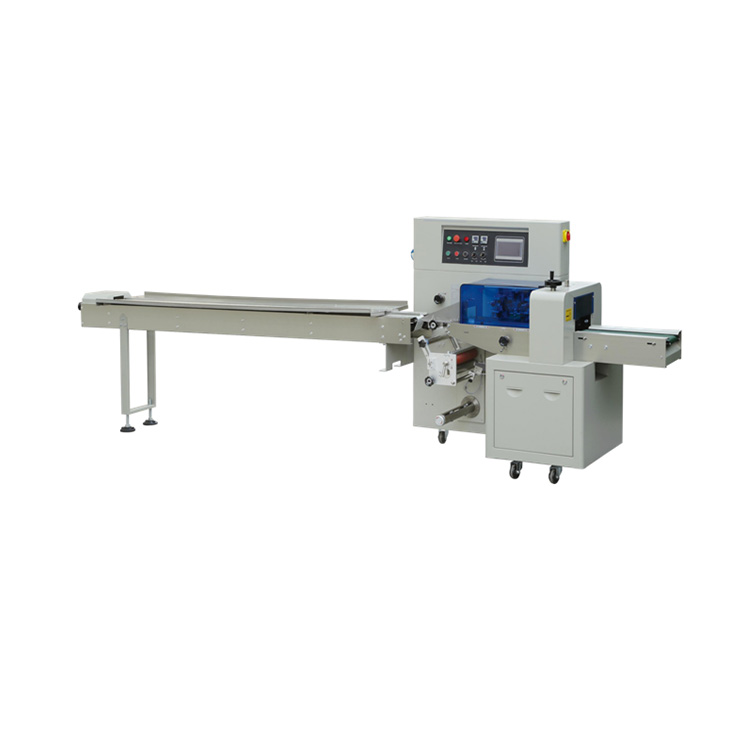

Machine name:3 side sealing bread packaging machine

Machine model:PPD-3SP250

Film width:max 240mm

Bag length:single knife 65-180mm

                   double knives 120-280mm

Bag width:30-110mm

Product height:max 40mm

Film roll diameter:max 320mm

Packaging speed:40-230 bags/min

Power:2.4 kw

Machine size:L 3624mm*W 670mm*H 1412mm

Machine weight:800kg
