4 Side Seal&Pack Machine

Features:

1:Continuous operation model:→ Stable feeding of surgical blade (non-stop) → Stable running tension of packaging film (non-stop) →automatic ready product cut off

2:Use the automatic control system developed by Jiaxing Patsons to realize the intelligent operation of the whole machine: the color touch screen operation interface is simple to operate, the 4-axis servo drive system, and the PLC programmable controller intelligent control. It has the advantages of precise film feeding, stable transfer of materials, and precise bag cutting.

3:With automatic feeder,no need to put the surgical blade to the conveyor belt by manual,save labor cost and more high production output.

4:Combined heat-sealing mechanism:realize multi-specification bag making without changing molds.

5:2 conveyor lane model or 4lane conveyor lane model as buyer requirement.

Machine data:

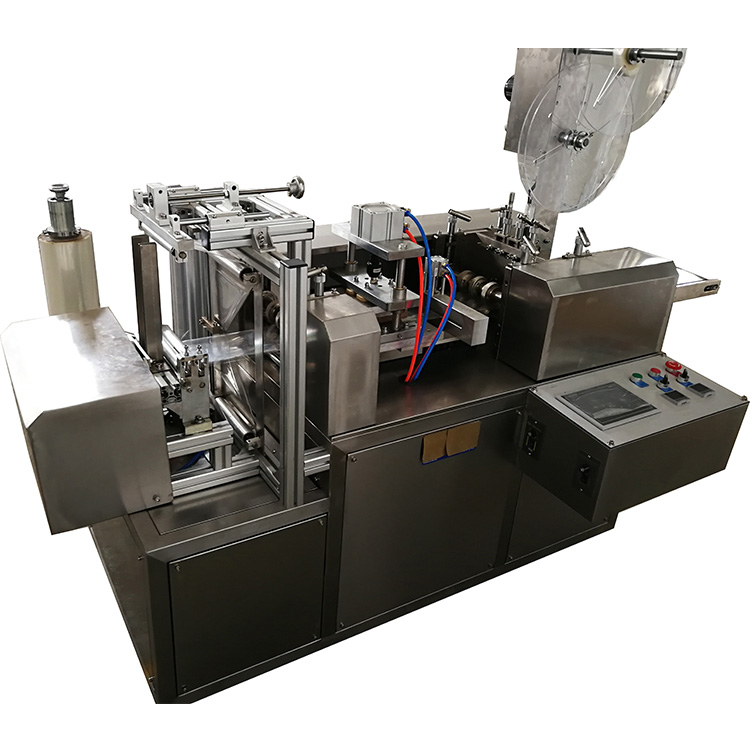

Machine name:Automatic surgical blade packaging machine with automatic feeder

Machine model:PPD-SBP80

Packaging film:coated paper,packaging film,PET film etc..

Packaging film max OD:350mm

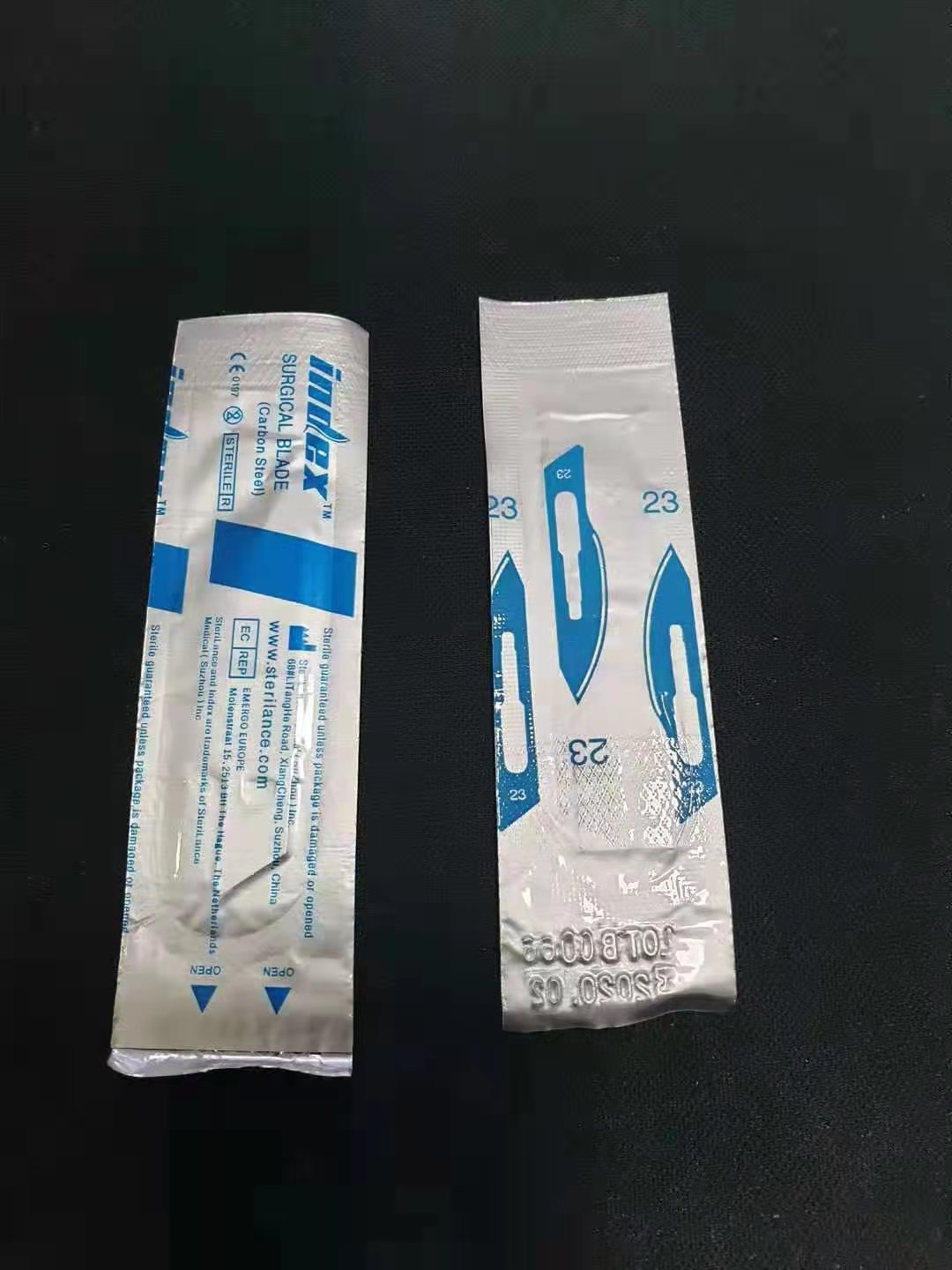

Product outside size:L 50mm*W 80mm(as buyer requirement)

Speed:80-120 pcs per min.

Power: heating 3.3KW motor:2.2Kw

Voltage:220v,50Hz (option)

NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS BUYER REQUIREMENT.

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
