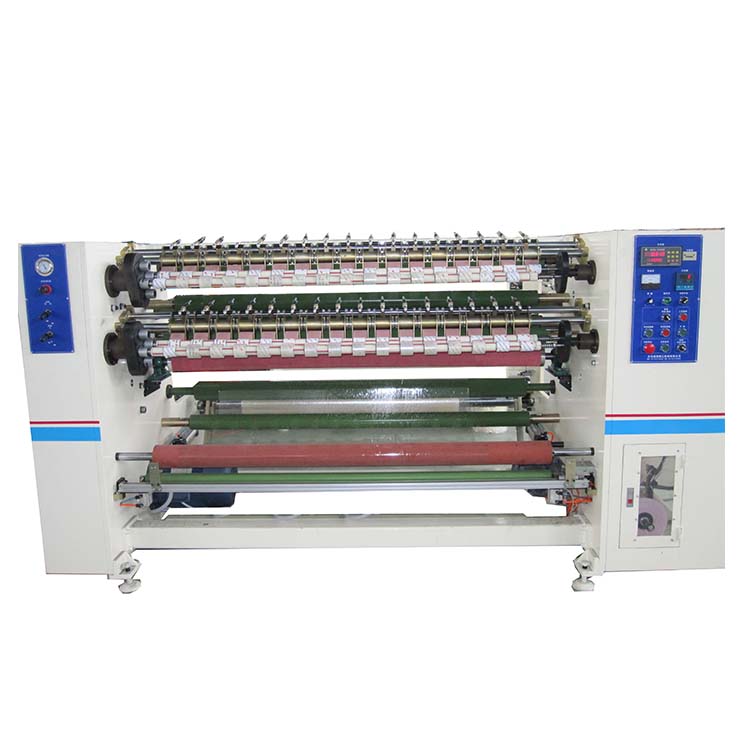

Super clear tape slitting machine

  • PPD-SCTS1450

  • The super clear tape slitting machine is an upgrade of our company's regular BOPP tape slitting machine. There is an additional set of pressure roller system than the regular model, but only a single specification of adhesive tape can be made.

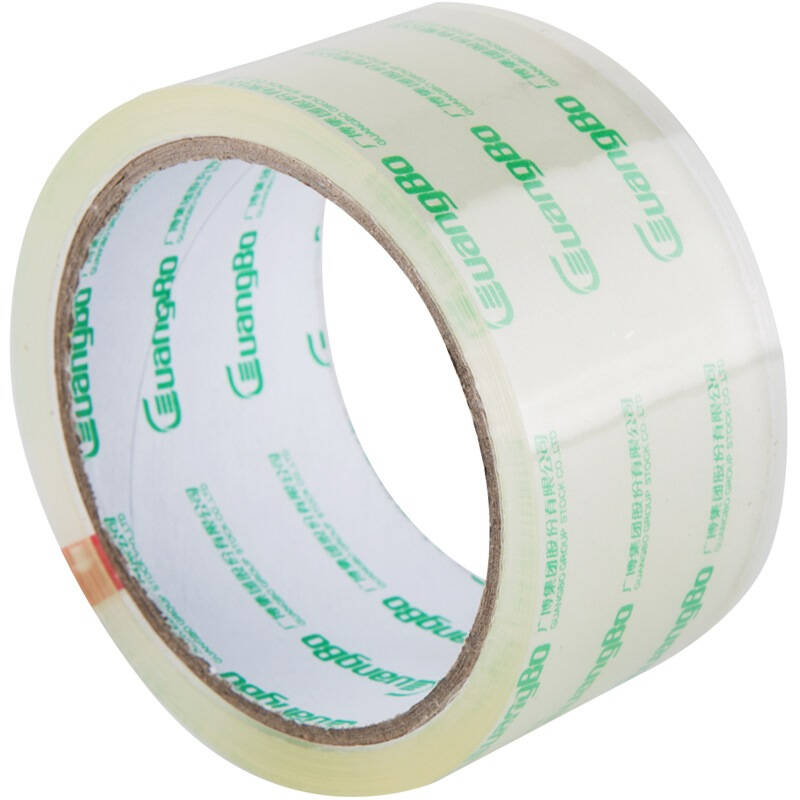

    This slitting machine can cut super clear tape,ultra transparent tape,BOPP tape,crystal tape, etc.

Features:

1. Magnetic powder fully automatic tension control brake, which can instantly stop the tape when stopped, ensuring accurate length

2. Four axis exchange work, after the coiling operation is completed, the two axes automatically exchange without stopping the operation

3. Pressing wheel system, which presses out the bubbles in the tape, resulting in a beautiful finished product

4. Automatic labeling mechanism to improve efficiency (optional)


Machine data:

Machine name:Super clear tape slitting machine

Machine model:PPD-SCTS1450

Raw material width:1450mm

Unload diameter:max 600mm

Rewinding diameter:max 180mm

Slitting width:42mm and 48mm

Rewinding paper core:3inch(76mm)

Slitting blade:razor knife

Speed:max 150m/min

Voltage:380v,50hz,3ph

Air compressor:5kg

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
