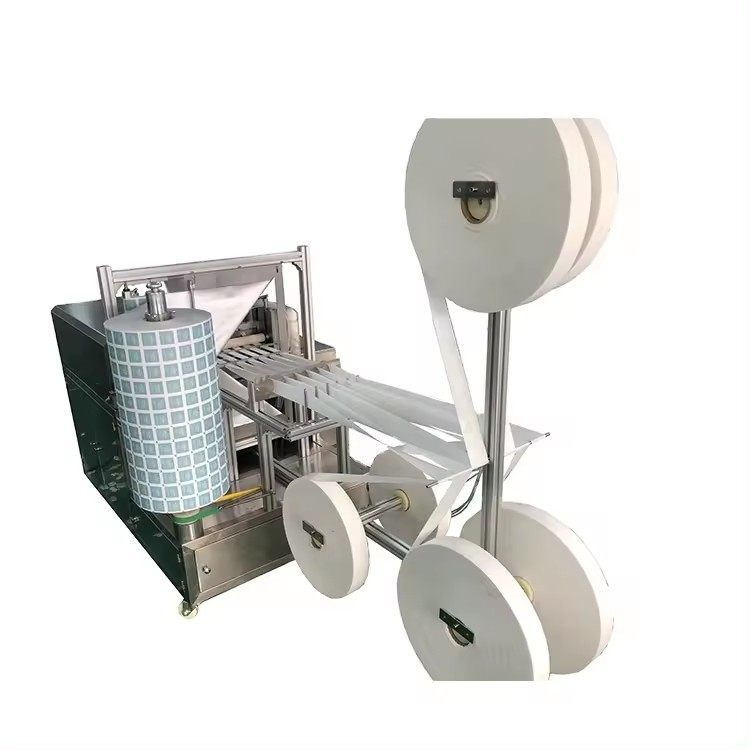

High Speed Alcohol Pad Packaging Machine

  • PPD-6L540

  • High speed alcohol pad packaging machine works steadily and continuously, it is suit for the production various kind of four side sealing products of all types alcohol swabs and alcohol pad.

Video

Features:

1. Machine is controlled by PLC programmable controller, and the touch screen panel sets parameters.

2. The amount of liquid sets on the touch screen.

3.High output,480-540pc/min

4.The inner non-woven fabric specifications are generally 60 × 30mm,30 × 30mm after folding, 2 layers .

5.The language of the touch screen panel can be special designed according to the buyers.



Main technical data:

Name:High speed alcohol pad packaging machine

Model: PPD-6L450

Nonwoven unfolded size: L: 60mm × W:30mm

Nonwoven folding size:L: 30mm × W: 30mm

Folding method: one fold, 2 layers

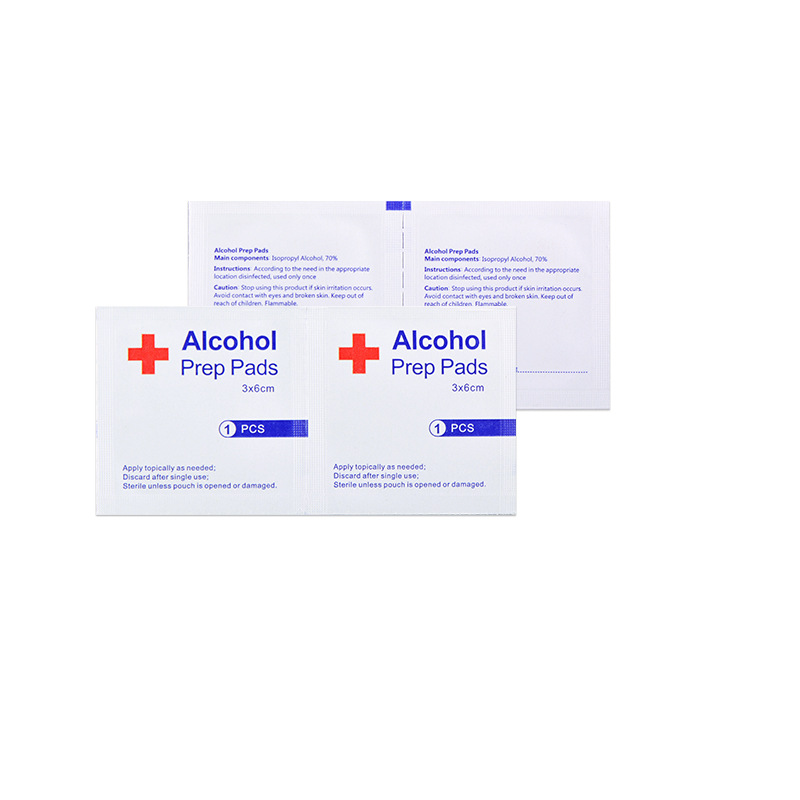

Alcohol pad size: L: 50mm × W: 50mm

Processing capacity: 480~540pc/min

Packaging film size: 73-110g/m2 paper aluminum film composite wrapping paper; OD ≤ 350 mm, width 400 mm, paper core inner diameter 3 inch

Nonwoven fabric size: roll, 30-60g/m2 spunlace,OD≤ 600mm, width 60mm

Total power: 220v, 50hz, 5.5kw

Weight: 500 kg

Machine dimensions:L:2500 × W: 1000 × H:1500mm

Packing size: L: 2200 ×W:1400 × H:1200mm




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
