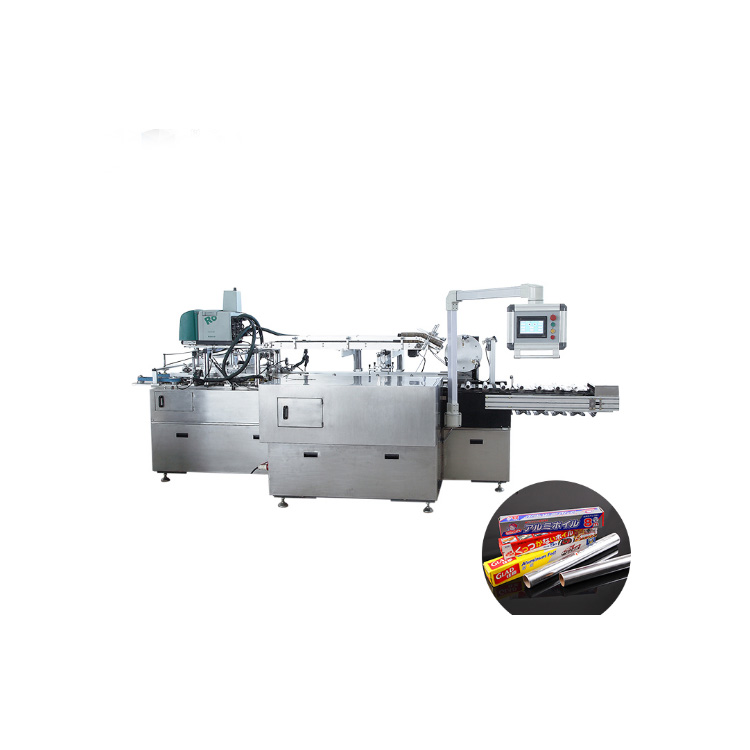

Full automatic aluminium foil roll cling film roll cartoning machine

  • PPD-CM100

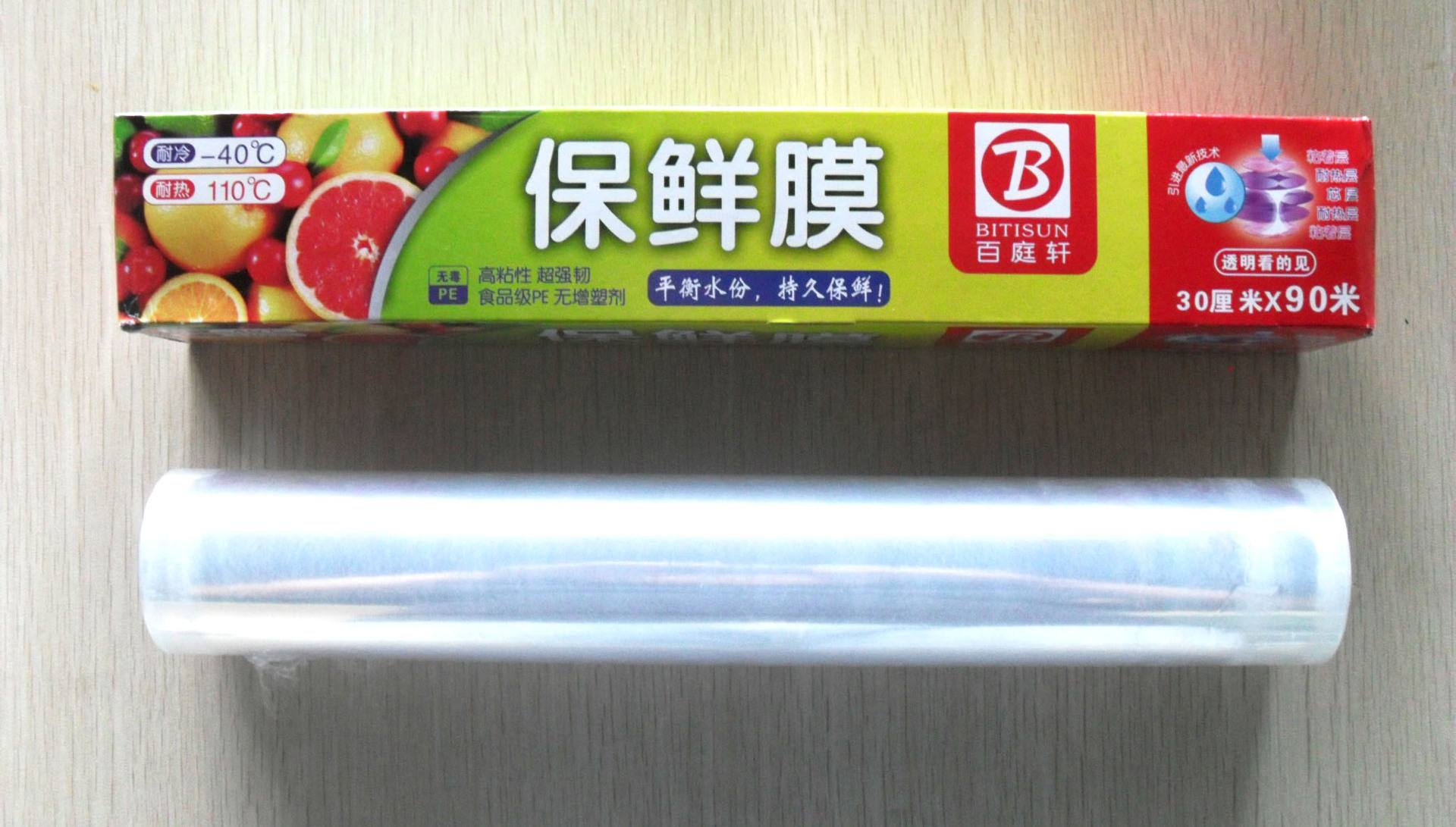

  • Full automatic aluminium foil roll cling film roll cartoning machine is special intelligent equipment which can box the material continuously and fully automatically.The maximum speed is 100 bpm(boxes per minute).The machine is suitable for the industry of plastic wrap,aluminium foil roll,food paper,aluminium foil paper and so on.This machine uses the rotary box sucking system.

Feature:

1:The machine has detection,alarm,fault display system which is compose of the sensor,photoelectricity,mechanical overload pretection device.

2:The paper box will not be supplied without material;the glue will not be sprayed without the paper box.The machine will alarm when the paper box is not in position,and will stop when the material is not supplied many times or overload is happened.The safe operation can be ensured.

3:The machine is controlled by PLC and human-machine interface.Adopts the principle of chain type moving continuously,the stability of the high-speed operation is ensured.

4:The machine has the on-line interface for back-up.The paper box will not be sucked down and the glue will not be sprayed when the material is not found on the conveyor belt by the photoelectric detection switch.The paper box will be avoided to waste.

5:The machine has automatic waiting function and can work with rewinding machine together(the length of the machine is decided by customer's paper box).


Machine data:

Max box size350*60*60mmL*W*H

Min box size150*30*30mmL*W*H

Speed≤100bpmbox per minter

Power SupplyAC380V 60HZ

Max power4.0KW

Noise≤80db

Available paper≥350(G/SM

Environment temperature25± 10

Overall dimension5050*2020*1750mmL*W*H

Weight3000KG

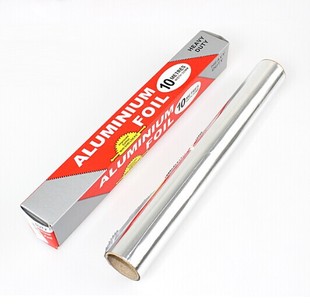

aluminium foil rolls.jpg

baking paper rolls.jpg

timg (3).jpg




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
