Slitting&Rewinding Machine

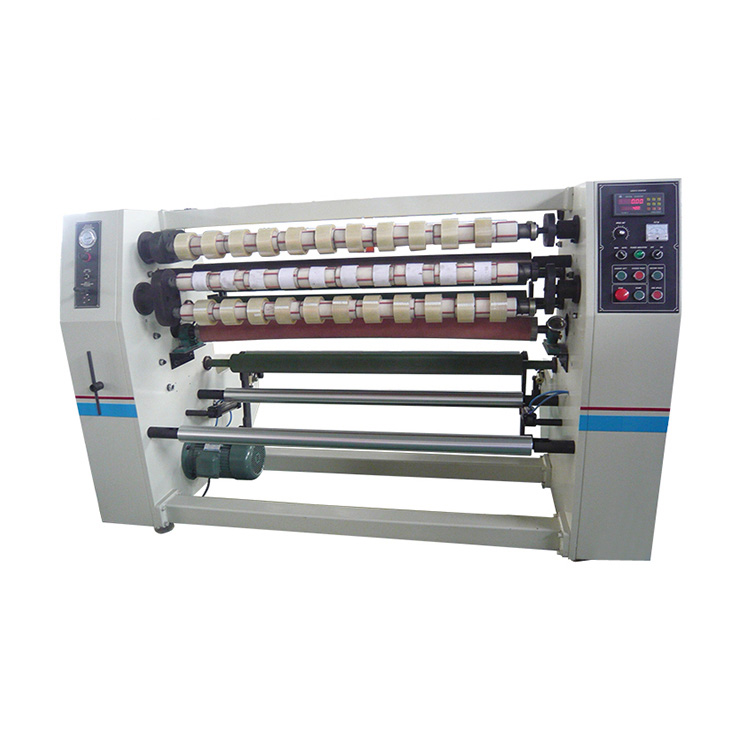

BOPP Adhesive Tape Slitting Machine
-
PPD-BO1280
-

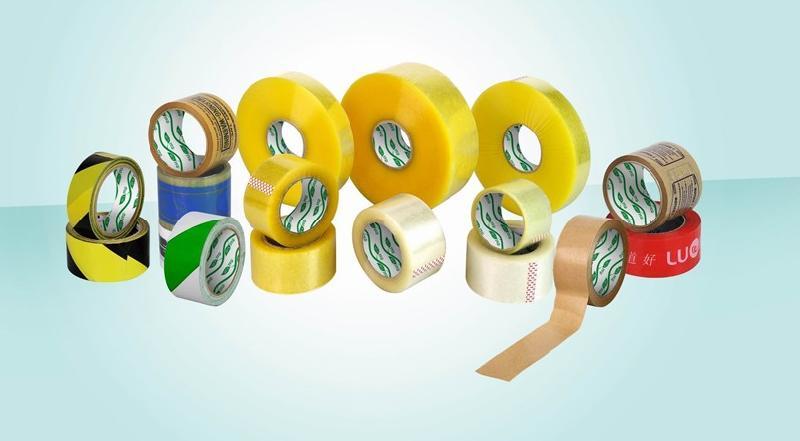

BOPP adhesive tape slitting machine is suitable for slitting and rewinding of BOPP tape, OPP tape ,stationery tape and any other different type tapes.
It is works with 4 shaft automatic shaft changing,automatic meter counting, automatic stop,high in production efficiency.
It is a complete production line,include the main slitter rewinder,core loading machine,core cutting machine,and mini doctor rewinding machine.
Video
Features:
1. The machine's transmission is composed of a synchronous wheel and a timing belt, which improves the speed and reduces the noise.
2. The unwinding roll load with magnetic powder brake, automatic tension control, stable material tension control, convenient brake adjustment and enhanced rewinding effect.
Main technicial data:
Name:BOPP adhesive tape slitting machine
Model:PPD-BO1280
Unwind roll width1280mm
Max.unwind diameter800mm
Slitting rewinding roll diameter :(4 shafts）180mm
Slitting rewinding roll width:12mm-1280mm
Slitting rewinding speed:180m/min
Slitting rewinding paper tube diameter:3inch
Slitting blade razor knife
Frequency: 50/60Hz
Phase: 3Phase
Volatge：220/380/415V
