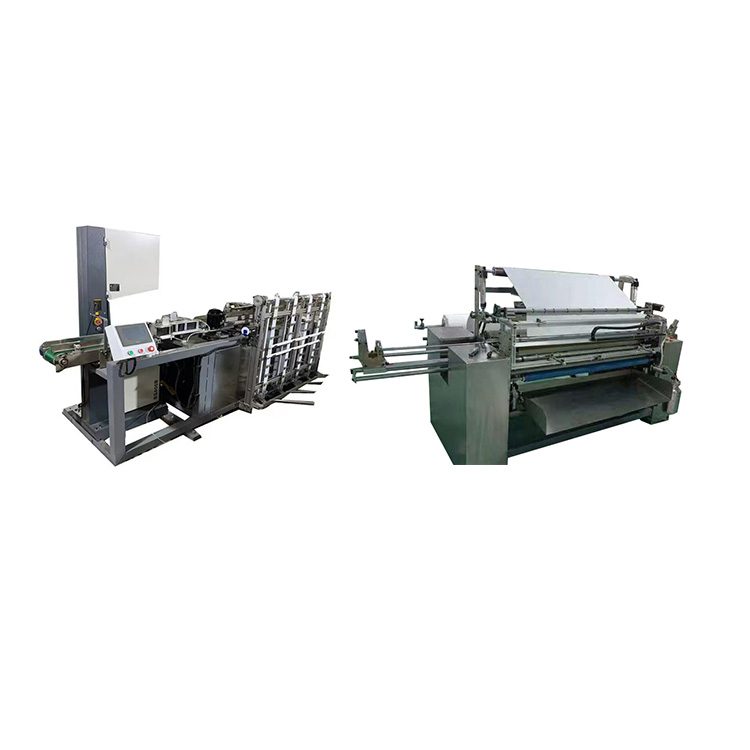

Automatic gauze bandage roll production line

  • PPD-GBR1250

  • Automatic bandage roll production line is developed by our company based on long-term bandage rewinding machines and bandage slitting machines. This is composed of a fully automatic bandage rewinder and a fully automatic bandage slitting machine. The bandage rewinding machine is used to rewind large rolls of bandages into small rolls of Xiaomi, and then the bandage slitting machine cuts the long rolls of Xiaomi into finished rolls of bandages. This equipment is a fully automated production line, greatly improving production efficiency,
    It is an ideal choice for producing small bandage rolls.

Video

Features:

1: Automated production equipment with high production efficiency.

2: The packaging machine can continue to be connected in the later stage, saving labor.

3: PLC parameter setting, easy to operate.


Machine data:

Machine name: Automatic bandage roll production line

Machine model:PPD-ABRP120


Machine 1:Automatic gauze bandage rewinding machine

Machine model:PPD-GBR1250

Jumbo roll width:1250mm(customized)

Jumbo roll ID:76mm(3inch)

Jumbo roll OD:800mm

Product roll length:1250mm(customized)

Product roll ID:10mm

Product roll length:5meters etc.

Speed:20meters/min


Machine 2: Automatic gauze bandage cutting machine

Machine model:PPD-AGB120

Speed:max 120pcs/min

Machine length:max 600mm

Machine length:3200mm

Machine width:1200mm

Machine height:1800mm

Installed capacity:4kw




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
