4 Side Seal&Pack Machine

Working process:

Raw material roll loading,soaking, unwinding, cutting, and 4 side sealing packaging.

Features:

1.Equipped with advanced servo motor,machine is controlled by PLC programmable controller,boasting features such as cutting, conveying,stable material transmission.

2.Optional double-layer material loaders are available for paper+film or paper+paper bag-making.

3.The innovative design includes an independent guide column structure, a mobile synchronous hot-sealing system, ensuring more uniform and stable sealing, resulting in improved instant sealing performance.

Machine data:

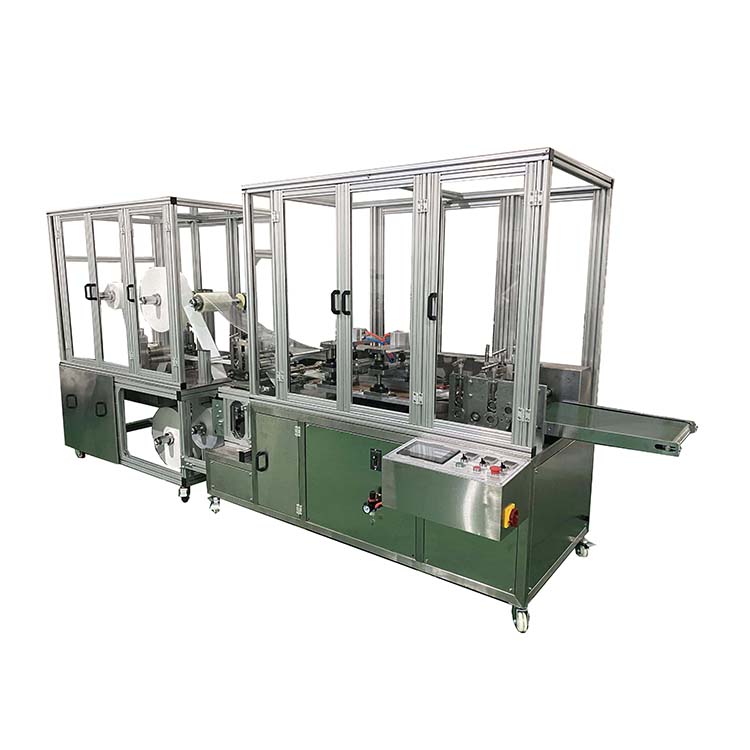

Machine name:4 side seal paraffin gauze pad packaging machine

Machine model:PPD-PGP50

Paraffin gauze pad size:100x100mm.( customer requests)

Bag size:150x160mm

Speed: 30-50 bags/minute

Packaging film size: Φ≤ 350 mm, width 150 mm,paper core 3inch

Gauze roll: coiled, 20-40g/㎡,diameter ≤ 600mm, width 100mm

Paper roll: diameter ≤ 400mm, width 130 mm

Raw material paper core: 3inch

Total power: 220V, 50Hz, 5 kW

Weight: 500 kg

Machine size: 2800mm*1100mm*1500mm(LWH)

Wooden case size: 2200mm*1500mm*1500mm(LWH)

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
