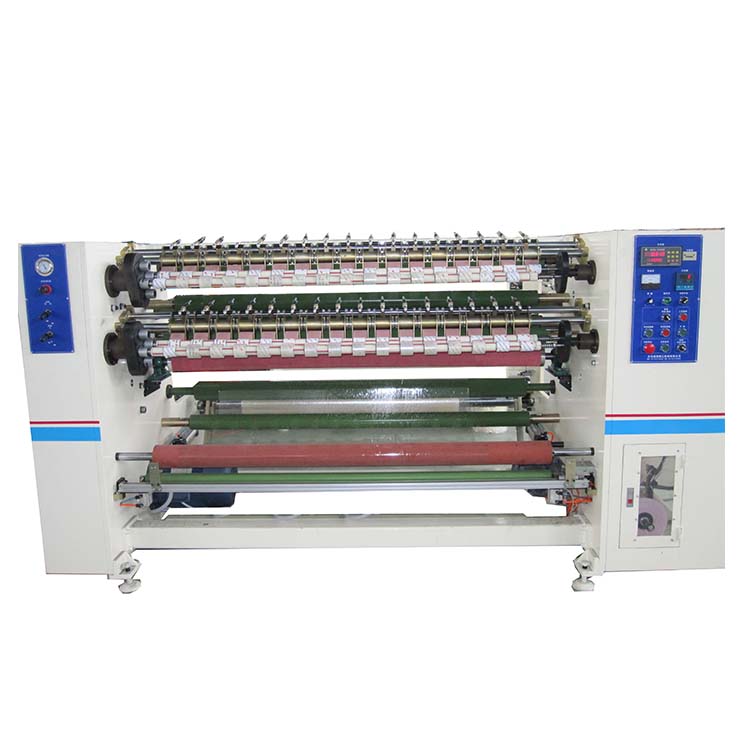

The super clear tape slitting machine is an upgrade of our company's regular BOPP tape slitting machine. There is an additional set of pressure roller system than the regular model, but only a single specification of adhesive tape can be made.

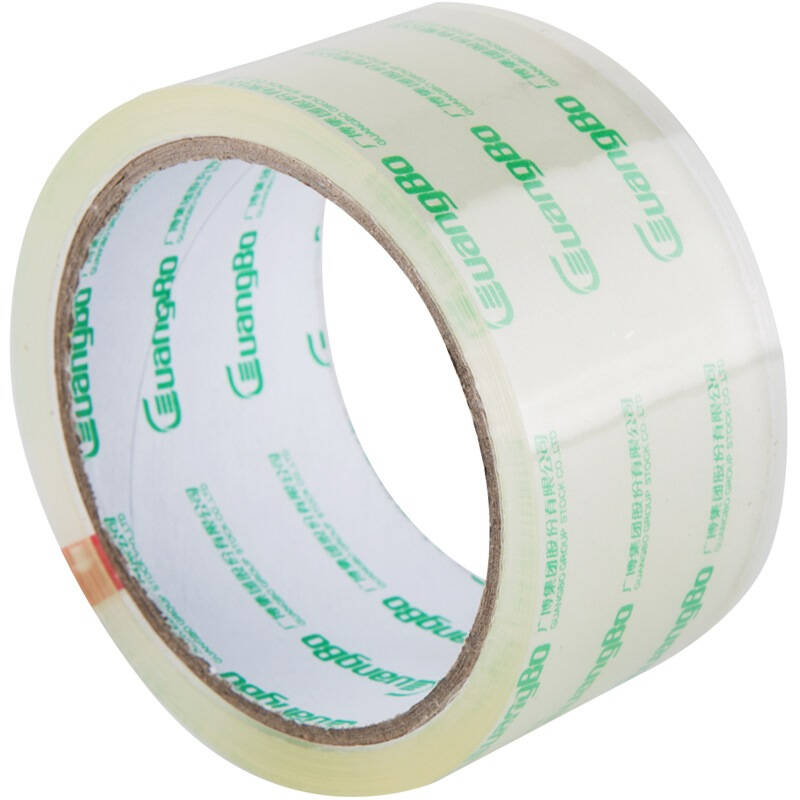

This slitting machine can cut super clear tape,ultra transparent tape,BOPP tape,crystal tape, etc.
Features:
1. Magnetic powder fully automatic tension control brake, which can instantly stop the tape when stopped, ensuring accurate length
2. Four axis exchange work, after the coiling operation is completed, the two axes automatically exchange without stopping the operation
3. Pressing wheel system, which presses out the bubbles in the tape, resulting in a beautiful finished product
4. Automatic labeling mechanism to improve efficiency (optional)
Machine data:
Machine name:Super clear tape slitting machine
Machine model:PPD-SCTS1450
Raw material width:1450mm
Unload diameter:max 600mm
Rewinding diameter:max 180mm
Slitting width:42mm and 48mm
Rewinding paper core:3inch(76mm)
Slitting blade:razor knife
Speed:max 150m/min
Voltage:380v,50hz,3ph
Air compressor:5kg
NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
