Stretch Film Rewinder

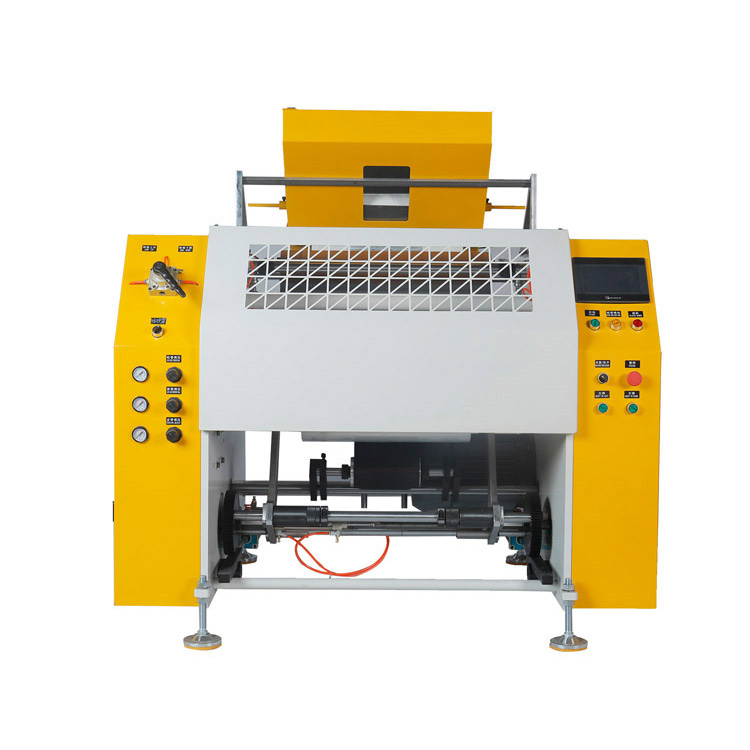

Safety cover automatic high speed stretch film rewinder machine
-
PPD-AHSR600
-
Safety cover automatic high speed stretch film rewinder machine is our 600mm width customized machine for our customers. Different from our standard 500mm width high speed stretch film rewinding machine, the 600mm width machine can do products with wider paper core, 520mm width and 550mm width and 600mm width paper core products can be made.
This machine is a high speed automatic stretch film rewinding machine with a maximum speed of 1200 meters per minute, which is an ideal choice for rewinding big roll of stretch film into small product rolls.
On the front of machine, we have installed a safety cover to prevent workers from touching the rewinding part of the machine with their hands when the machine is running at high speed, which is safe and reliable.
Video
Features:
1: Widen to 600mm width,machine can produce wider product rolls.
2:Max rewinding speed of the machine can reach 1200 meters per minute,high output
3:Color touch screen to set parameters, automatic machine rewinding, simple and convenient operation, one worker can handle 2-3 machines.
Machine data:
Machine name: Safety cover automatic high speed stretch film rewinder machine
Machine model:PPD-AHSR600
Big roll width: max 600mm
Big roll inner diameter: 3''
Big roll outer diameter : 500mm
Small roll width: max 600mm
Small roll inner diameter: 1.5/2/3inch
Small roll length: 100/300/600meters adjustable
Speed: max1200m/minute
Power: 4.37kw
Voltage: 3ph, 220/380/415/440v
NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
