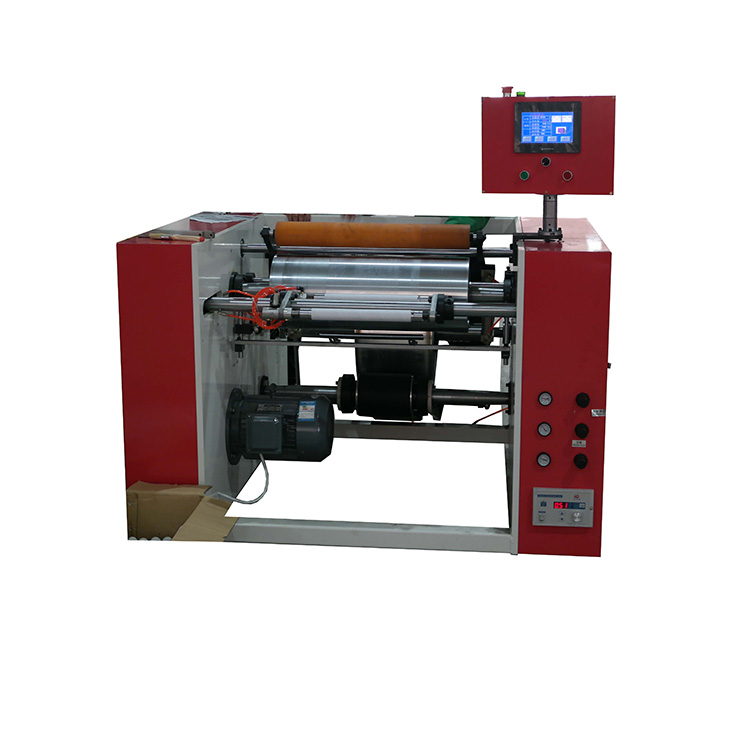

Aluminium Foil Machine

Features:

1:PLC touch screen,easy to setting the data,user friendly.

2:Machine is with two different rewinding system,it can rewind the aluminium foil roll and the cling film roll.

3:Machine is automatic meter counting,automatic shutdown,automatic deceleration,automatic brake system.

4:Two shaft rewinding system,speed is faster.

Machine data:

Model:PPD-AFCF600

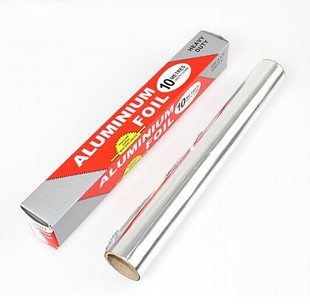

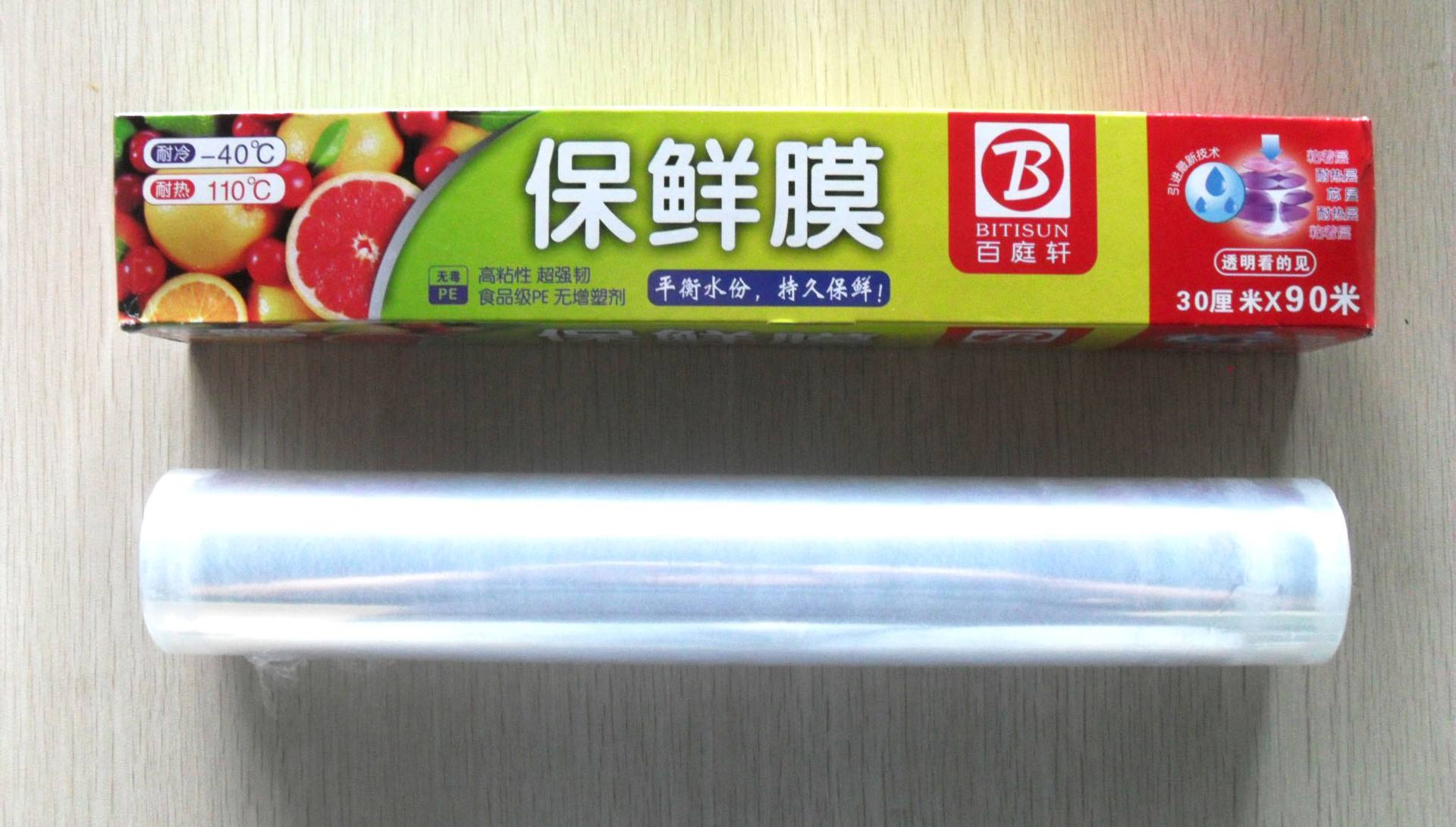

Rewinding material:Aluminium foil,cling film

Mother roll thickness:8-20mic

Mother roll width:450mm(adjustable)

Mother roll inner core size:76&152mm (option)

Mother roll outer diameter:600mm

Baby roll inner core diameter:25/30/35/38/40mm(option)

Baby roll width:450mm(adjustable)

Baby roll length:3-300meters

Production speed:max 300rpm/min

Voltage:220/380/415/450v,50hz,3 phase

Total power:2.2kw

Machine weight: 880kg

Machine size: 1800*1750*1350mm

NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS BUYER REQUIREMENT

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
