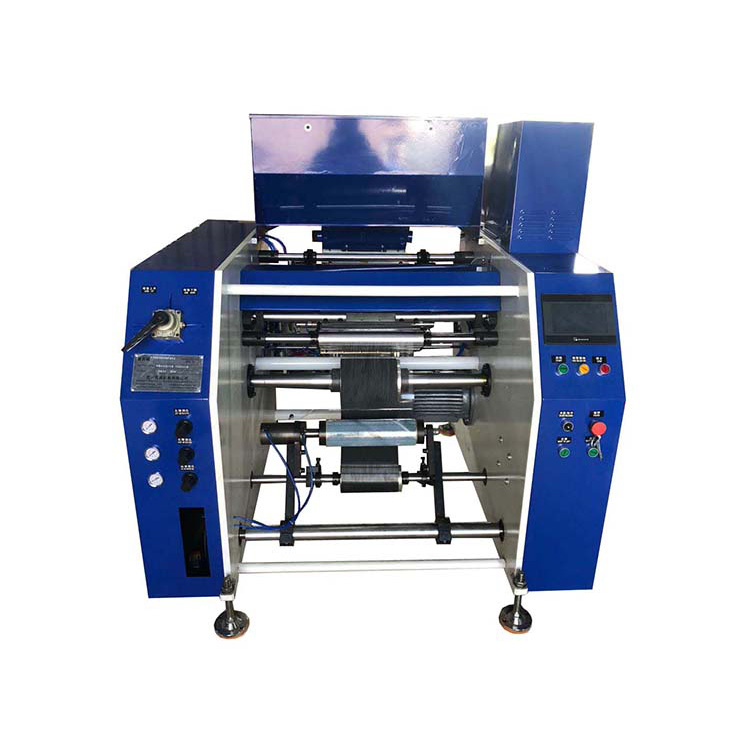

Cling Film Rewinder

Features:

1.Machine adopts PLC and manual control panel together with inverter control system,easier to operate and run the machine.

2.Easy to operate and inspect machine with automatic and manual two control panel.

3.Automatic changing paper core,and also cutting and loading finished product automatically.

4.One worker can operate two or three machines at same time.

5.The conveyor system is for additional choose,not included the machine.

6.Change the perforated function,this machine can produce cling film perforation roll and standard cling film roll.

Machine data:

Model:PPD-ACWP450

Width of mother roll:max 450mm

Width of Finish Roll:max 450mm

Production speed:650m/min

Mother roll diameter:max 500mm

Finish roll diameter:Max 200mm

Perforation length:300mm(option)

Core of mother roll :76mm

Core of finish roll OD: 30/35/38mm(option)

Total power:4.5kw

Weight:860kg

Packing size:1550*1550*1700mm

NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED.
