Stretch Film Rewinder

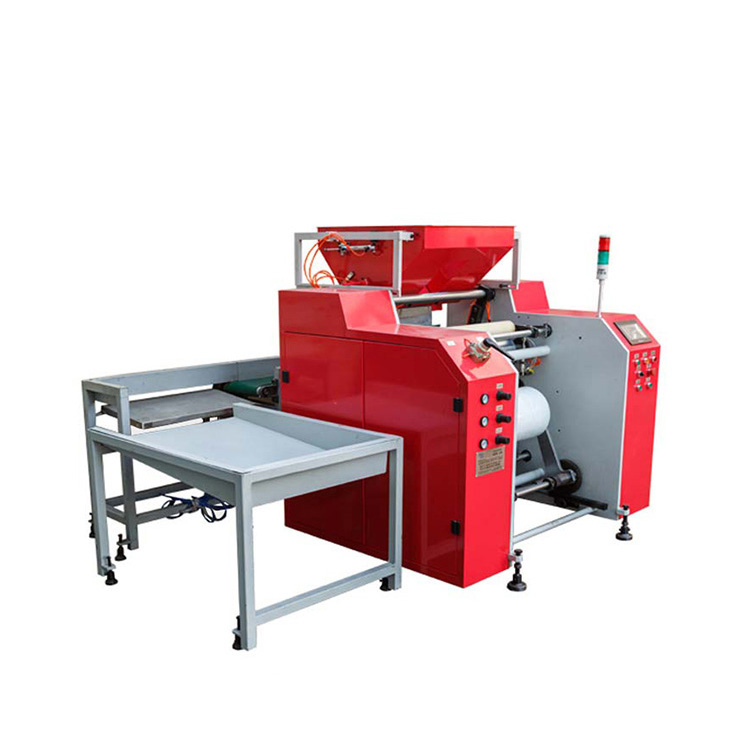

Automatic stretch film rewinder with edge folded function
-
PPD-ARWEF500
-

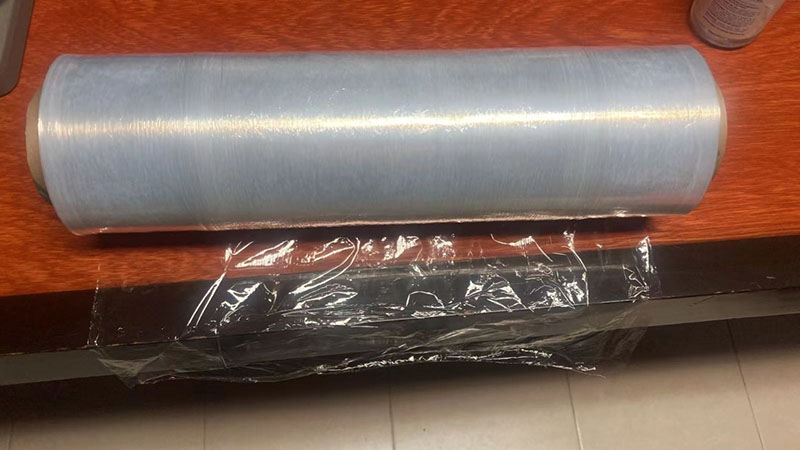

Automatic stretch film rewinder with edge folded function is an upgrade of our company's existing automatic high speed stretch film rewinder.This machine can not only rewind the stretch film at high speed, but also produce stretch film small rolls with folded edges.Stretch film rolls with folded edges have higher strength and can be pulled continuously than ordinary stretch film rolls.
The device is easy to operate and multifunctional.
Video
Features:
1: PLC control, touch screen setting of meters and speed, easy to operate.
2: Machine can rewind the stretch film small rolls or produce the stretch film with folded edge products.
3: Automatic equipment, one person can operate 2-3 machines.
Machine data:
Machine name:Automatic stretch film rewinder with edge folded function
Machine model:PPD-ARWEF500
Jumbo roll width: 500mm
Jumbo roll ID:76mm.
Jumbo roll OD: 400mm
Small roll width:500mm
Small roll ID:50mm,76mm
Small roll length:max 1000meters
Machine speed:max 1200meters/min
Edge folded function:have
Voltage:220/380/415/440v,50hz,3ph
NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
Related Product

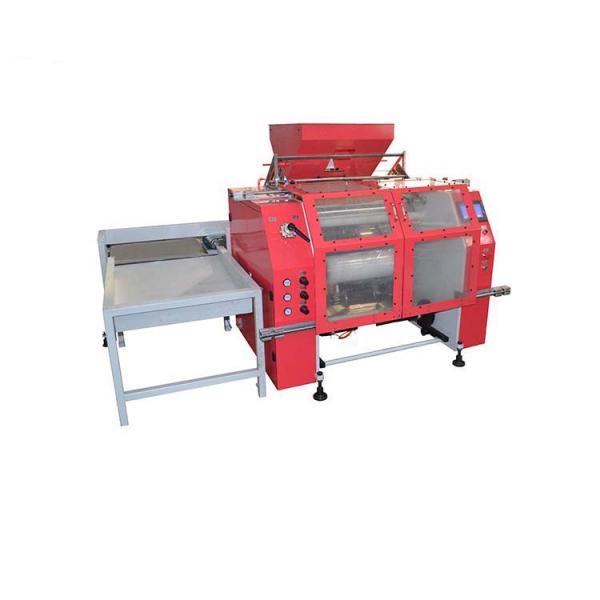

Automatic stretch film rewinder
PPD-ARW500

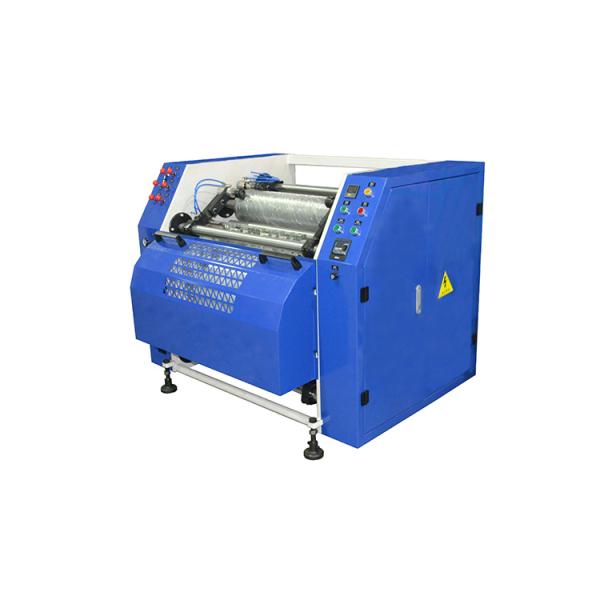

Semi auto stretch film rewinder
PPD-SAFR500
Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
