Stretch Film Rewinder

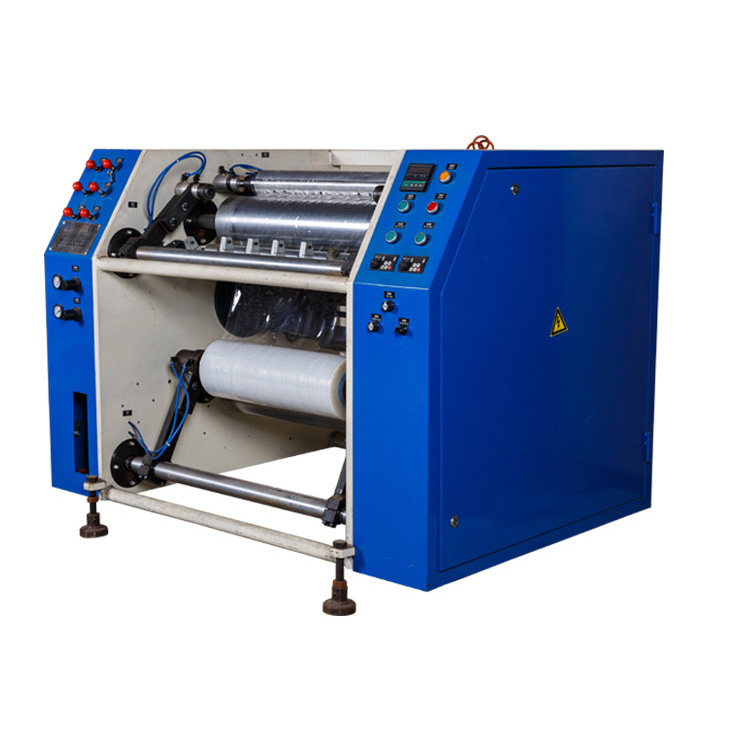

2 shaft semi automatic pre stretch film slitter rewinder
-
PPD-SAPS500
-
2 shaft semi automatic pre stretch film slitter rewinder is designed for slitting pre stretch film jumbo roll to make specified quantity of mini-rolls with minimal roll width 50mm.This model can also slitter rewinder as standard stretch film.cling film etc..
This model can do rewinding system and slitting rewinding system, so the equipment has a wide range of applications.
It is suitable for pre stretch film,PE cling film,PE stretch film,industrial stretch etc..
Video
Features:
1- It is suitable for rewinding and slitting of pre stretch film,stretch wrap film and cling film etc..
2-The width of slitting knife can be adjusted easily.
3- The machine is easy to operate,user friendly.
4- With automatic meter counter.
Machine data:
Machine name: 2 shaft semi automatic pre stretch film slitter rewinder
Machine model:PPD-SAPS500
Mother rell width:max 500mm(adjustable)
Mother rell diameter:max 400mm
Mother rell inner diameter:76mm(3inch)
Material rell loading way:Pneumatic cylinder
Product rell inner diameter: 50mm/76mm(option)
Product rell width:50mm to max mother rell width(adjustable)
Design working speed:max 650rpm/min
Voltage:220/380/415/450v,3ph(option)
NOTE:DIFFERENT SPECIFICATIONS CAN BE CUSTOMIZED.
